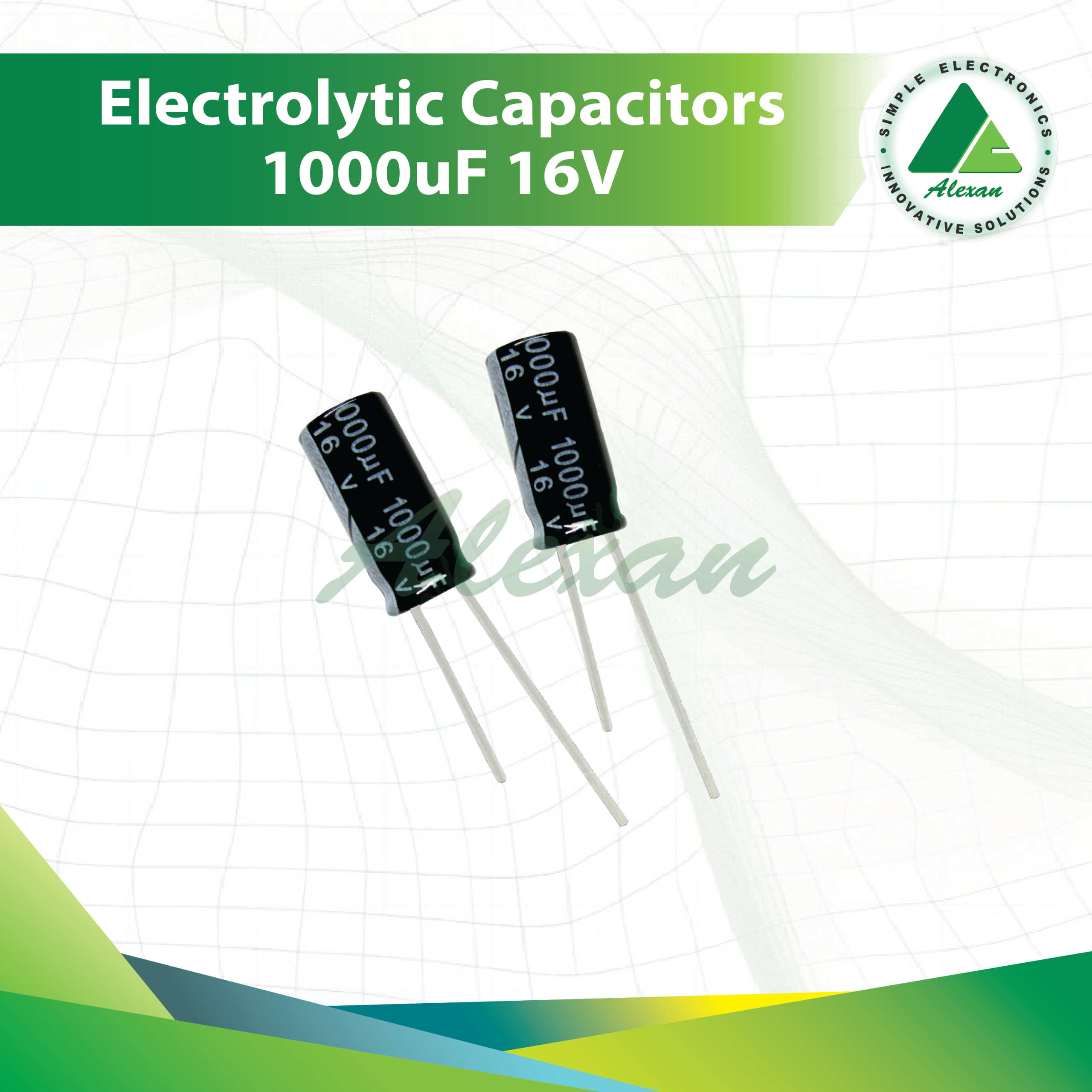

1000uF 16V Electrolytic Capacitors

1000uF 16V Electrolytic Capacitors

1000uF 16V Electrolytic Capacitors

A capacitor with a capacitance of 1000 microfarads and a maximum voltage rating of 16 volts, and is specifically an electrolytic type, which typically offers high capacitance values in a small package compared to other capacitor types; it is polarized, meaning it has a designated positive and negative terminal and must be connected with the correct polarity to function properly.

Breakdown:

1000uF:

This represents the capacitance value, meaning the capacitor can store 1000 microcoulombs of electric charge per volt of potential difference.
16V:

This is the maximum voltage that can be applied across the capacitor before it is damaged.
Electrolytic:

This specifies the type of capacitor, which uses an electrolyte to achieve high capacitance values.

Common applications:

Power supply filtering: Smoothing out voltage ripples in power supply circuits.
Audio circuits: Filtering and stabilizing audio signals
General purpose electronic devices where moderate voltage storage is needed.

SKU: 1000UF16V Category: Semiconductors Tags: Capacitors Semiconductors

470uF 50V Electrolytic Capacitors

1000uF 50V Electrolytic Capacitors

Description

1000uF 16V Electrolytic Capacitors

Specification:
Capacitance: 1000uF
Rated Voltage: 16V
Capacitance Tolerance: +/-20% (at 120Hz, 20℃)
Lead Type: Radial
Category Temperature Range: -40℃ to +105℃ (6.3~100V)
Life Span: 2000-3000h
Body Size: 10 x 17mm
Lead Length: 20mm, 25mm
Lead Space: 5mm
Lead Diameter: 0.6mm
