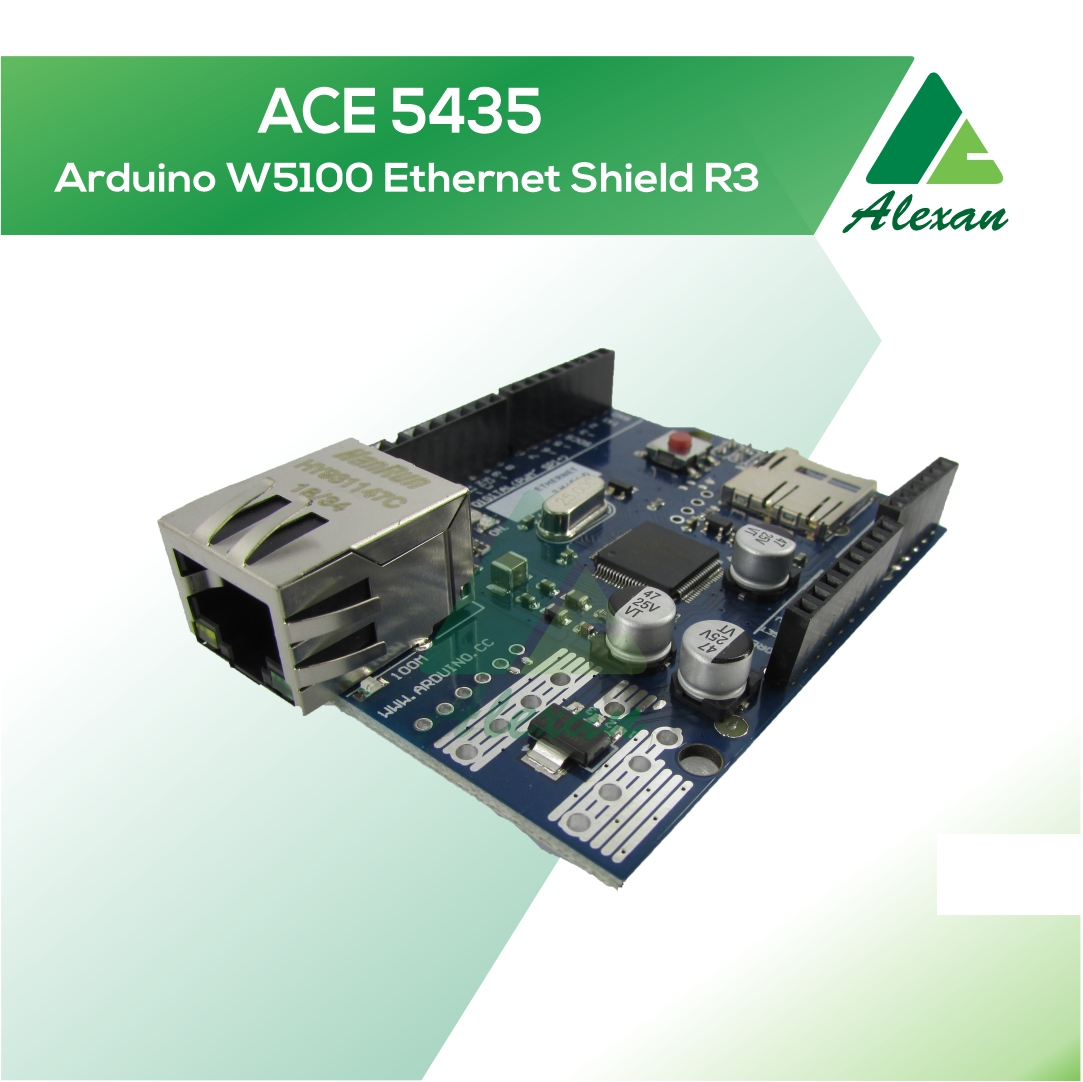

ACE 5435 Arduino W5100 Ethernet Shield R3

The Arduino Ethernet Shield V1 connects your Arduino to the internet in mere minutes. Just plug this module onto your Arduino board, connect it to your network with an RJ45 cable (not included) and follow a few simple instructions to start controlling your world through the internet.

The Ethernet Shield allows an Arduino board to connect to the internet. It is based on the Wiznet W5100 ethernet chip. The chip provides a network (IP) stack capable of both TCP and UDP. It supports up to four simultaneous socket connections. Use the Ethernet library to write sketches which connect to the internet using the shield. The ethernet shield connects to an Arduino board using long wire-wrap headers which extend through the shield. This keeps the pin layout intact and allows another shield to be stacked on top.

Features:

• Connection with Arduino on SPI port
• Has a standard RJ-45 connection, with an integrated line transformer and Power over Ethernet enabled
• With on-board micro-SD card slot
• Reset button on the shield resets both the W5100 and the Arduino board.
• The shield contains a number of informational LEDs
