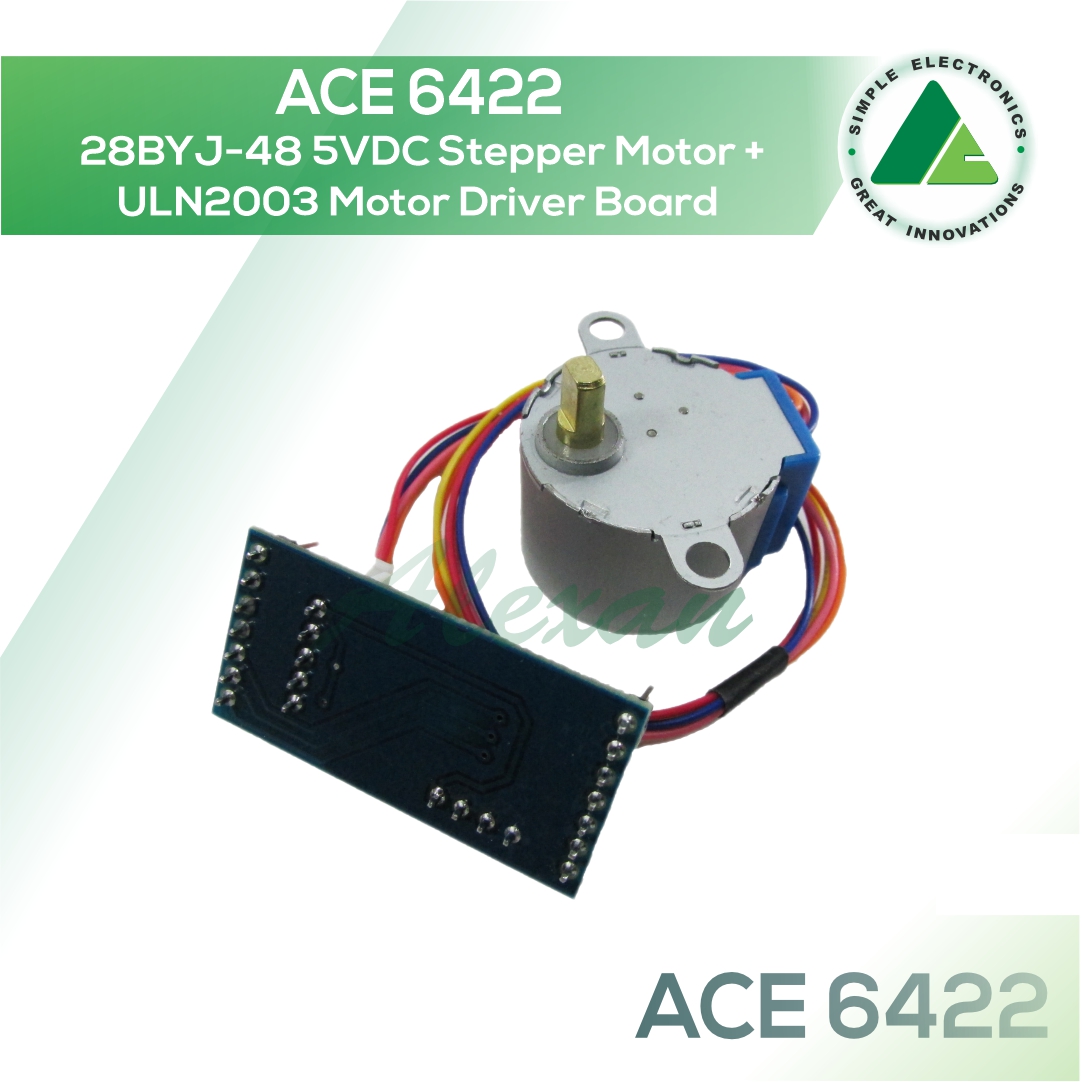

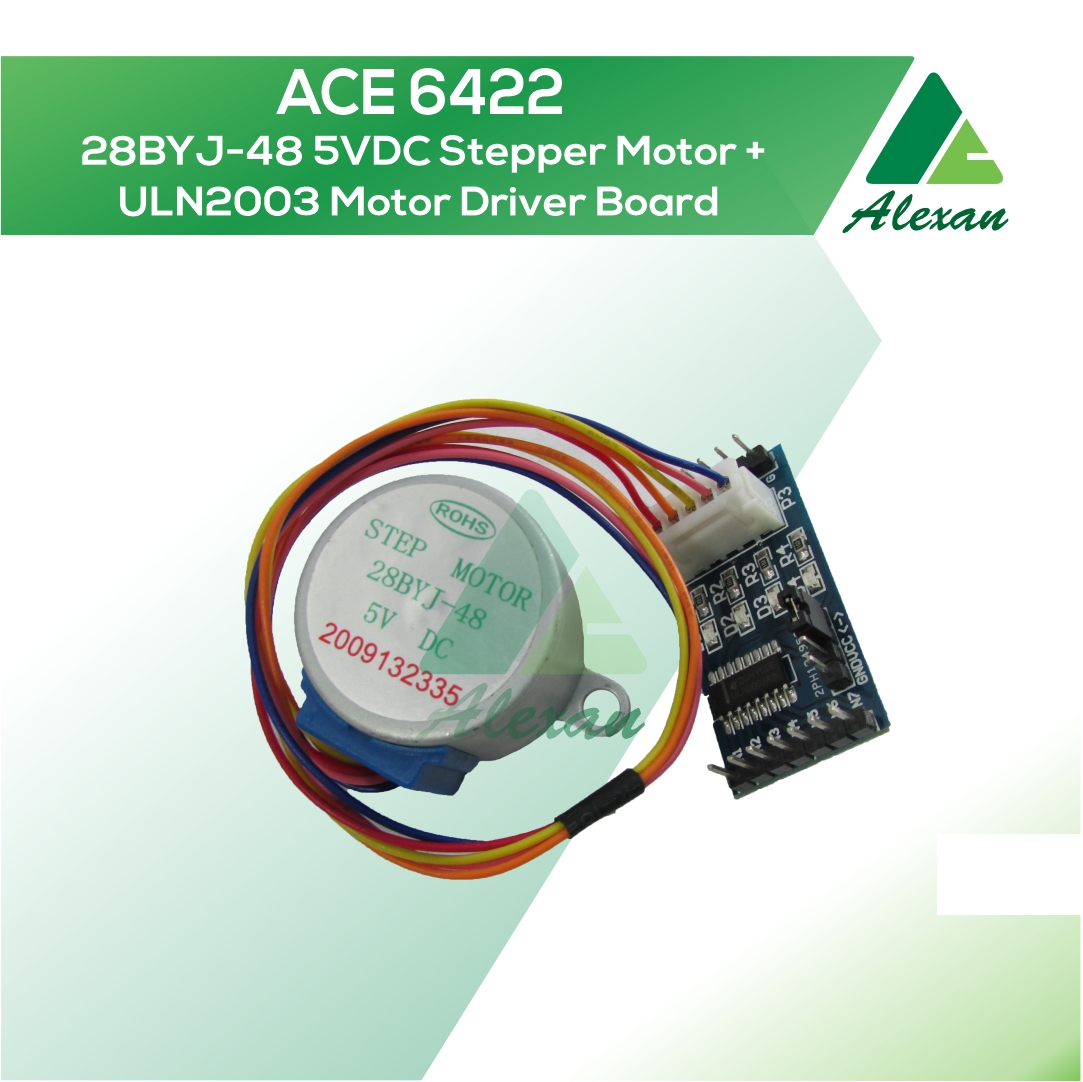

ACE 6422 28BYJ-48 5VDC Stepper Motor + ULN2003 Motor Driver Board

ACE 6422 28BYJ-48 5VDC Stepper Motor + ULN2003 Motor Driver Board

Stepper motors are great motors for position control. They are a special type of brushless motors that divides a full rotation into a number of equal “steps”. They are usually found in desktop printers, 3D printers, CNC milling machines, and anything else that requires precise positioning control.

The 28BYJ-48 stepper motor consumes high current and hence, you will need to use a driver IC like the ULN2003 in order to control the motor with a microcontroller like the Arduino. The 28BYJ-48 stepper motor comes with a ULN2003-based driver board which makes it super easy to use.

SKU: ACE6422 Category:

ACE 6422 28BYJ-48 5VDC Stepper Motor + ULN2003 Motor Driver Board

Specifications:
Rated Voltage: 5 – 12 V DC
Reduction Ratio: 1/64
Step Torque Angle: 5.625°/64
DC Resistance: 200Ω±7% (25°)
Insulation Resistance: >10MΩ (500V)
Insulation Grade: A
No-load Pull in Frequency: >600Hz
No-load Pull out Frequency: >1000Hz
Pull in Torque: >34.3mN.m (120Hz)
Detent Torque: >34.3mN.m
Temperature Rise: <40K (120Hz)
Noise: <40dB (120Hz, No load, 10cm)
Board Size: 35 x 31 x 11mm

Dimensions 35 × 31 × 11 mm
