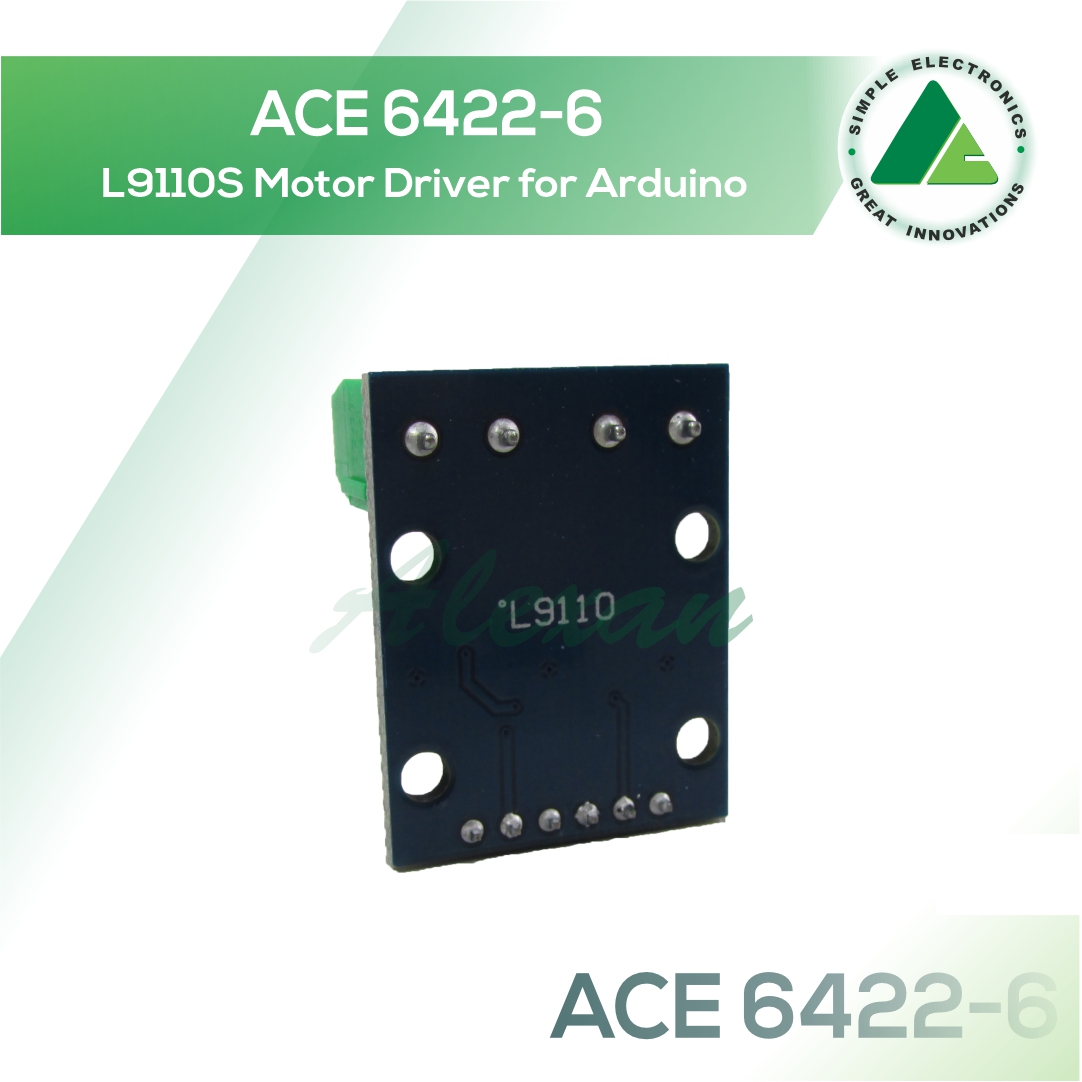

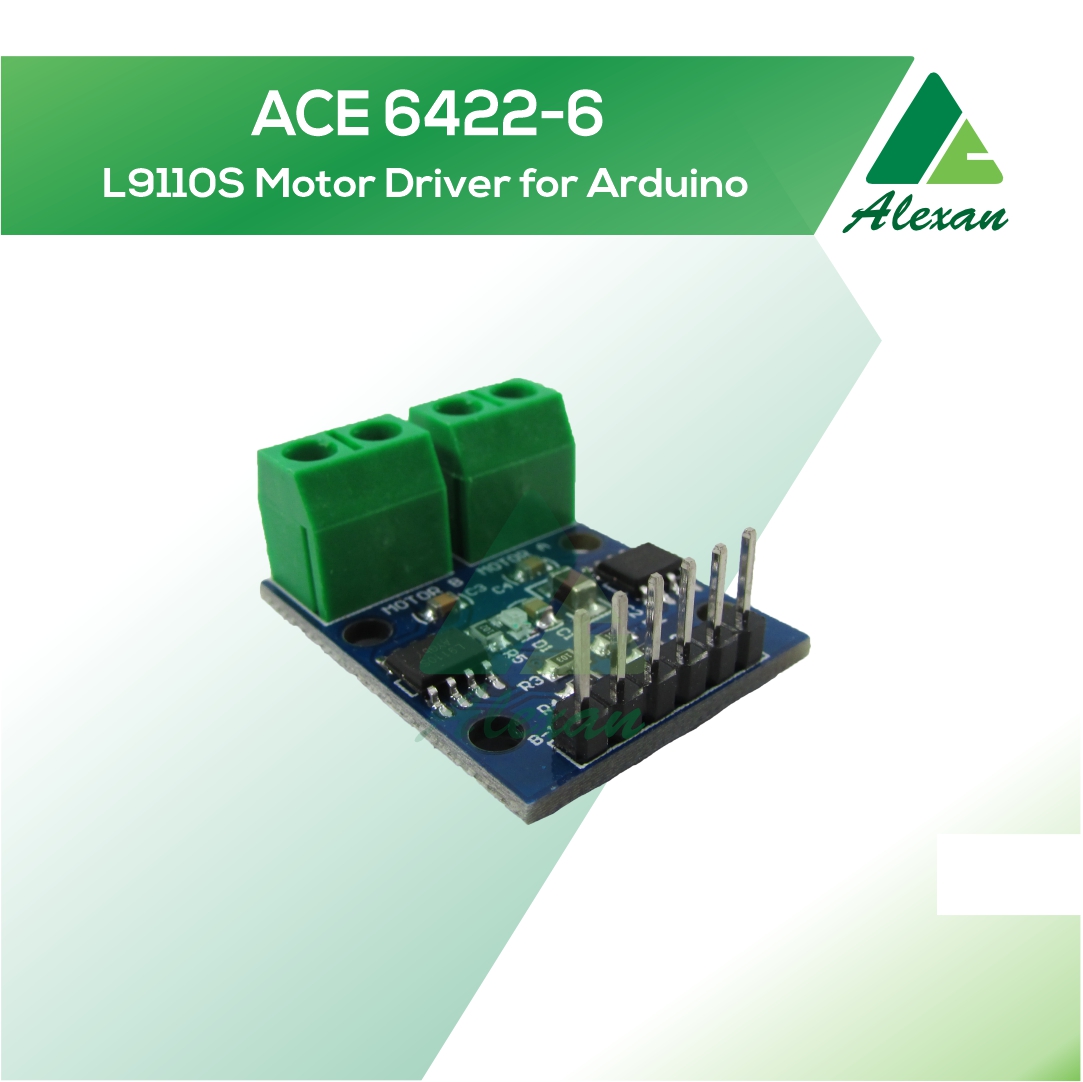

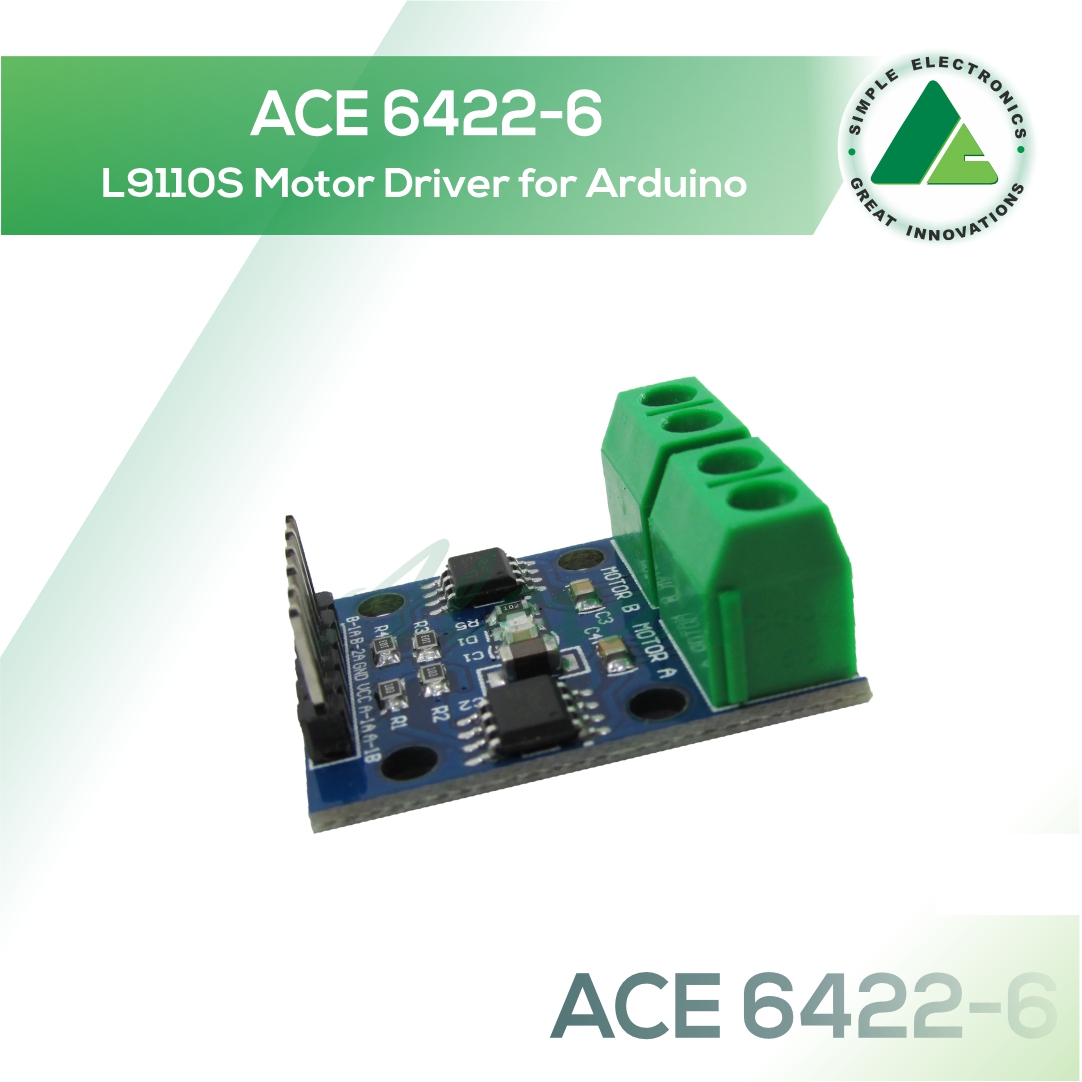

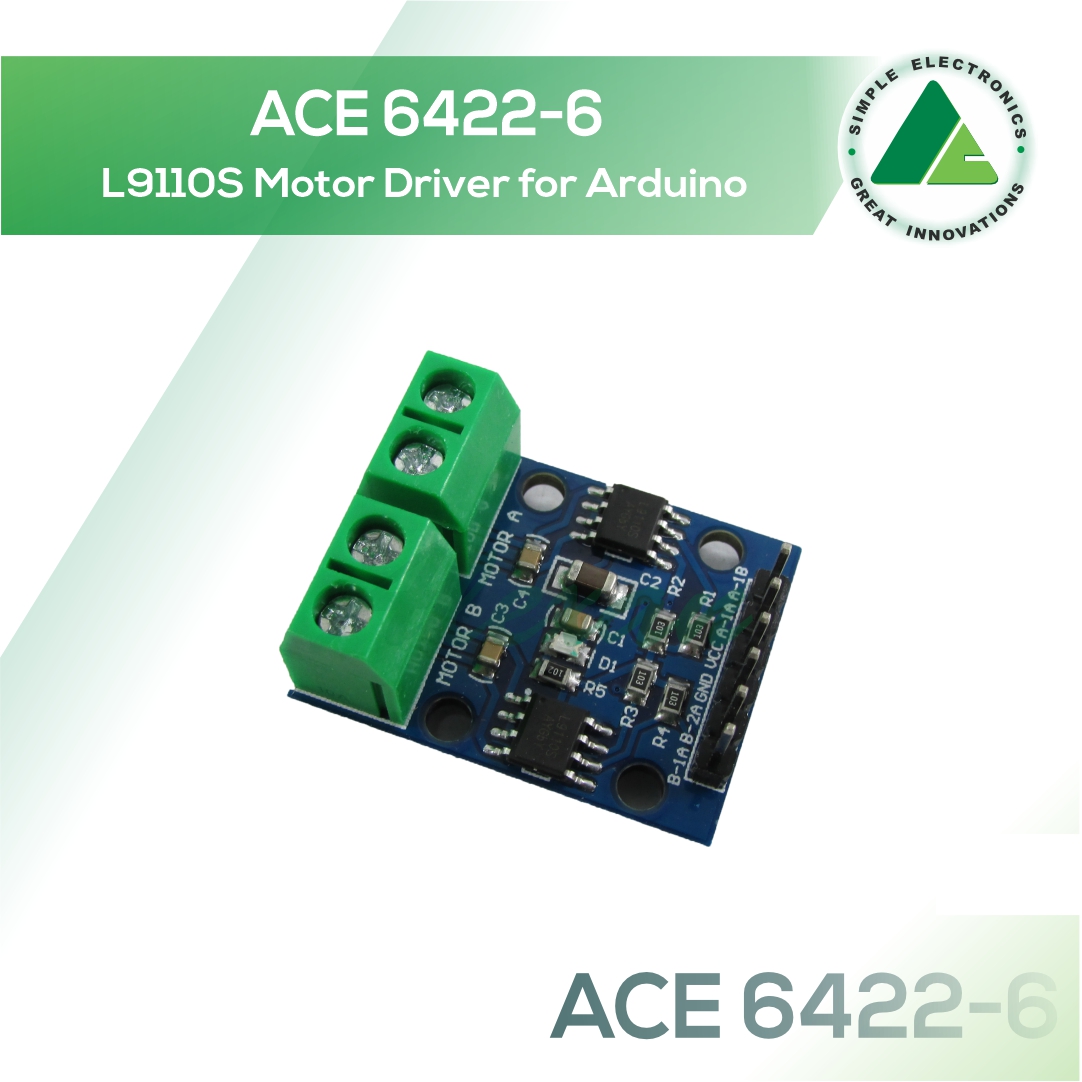

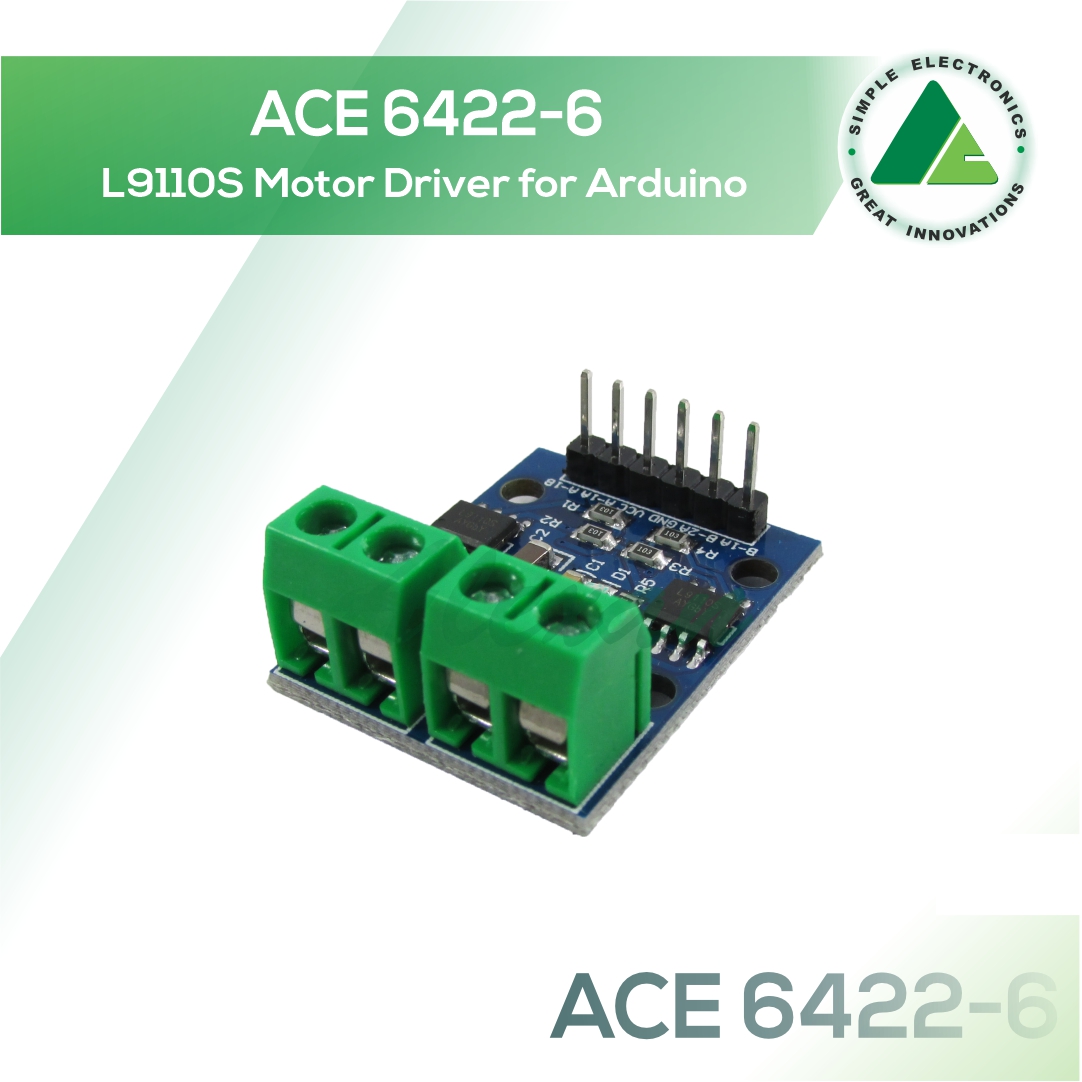

ACE 6422-6 L9110S Motor Driver for Arduino
This module is a compact motor driver board that supports a voltage range from 2.5-12V at 800mA of continuous current. The L9110S chips have built-in output clamp diodes to protect your sensitive microcontroller electronics. This is suitable for small robot projects.
The L9110S or HG7881 motor driver is a cheaper alternative to L298N, L298, L293D and L293 motor drivers.
ACE 6422-6 L9110S Motor Driver for Arduino
Specifications:
Main Chip: dual L9110S motor control chip
Input Voltage: 2.5 – 12 V
Maximum working current: 800mA
Dimension: 29 x 23.5 x 12 mm
Weight: 5.5g
Pinout:
B-IA: Motor B Input A (IA)
B-IB: Motor B Input B (IB)
GND: Ground
VCC: Operating Voltage 2.5-12V
A-IA: Motor A Input A (IA)
A-IB: Motor A Input B (IB)
| Weight | 0.0055 kg |
|---|---|
| Dimensions | 29 × 23.5 × 12 mm |
