ACE 6629 DS3234 Real-Time Clock Module RST Input / Output for Arduino Uno

ACE 6629 DS3234 Real-Time Clock Module RST Input/Output for Arduino Uno

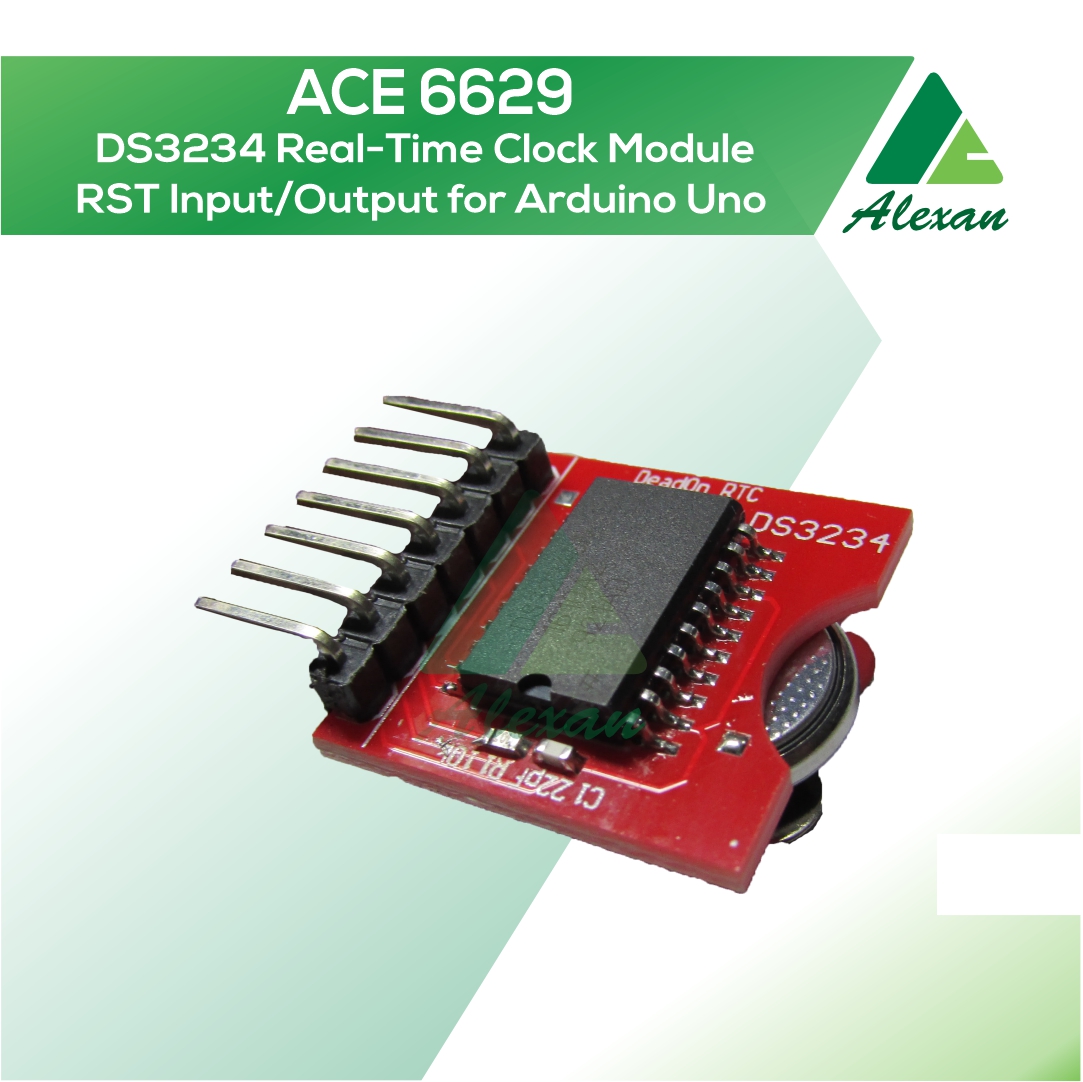

This is a simple breakout board for the DS3234 real-time clock (RTC) IC. The DS3234 can accurately keep track of seconds, minutes, hours, days, months, and years, so your microcontroller doesn’t have to. It even features a pair of configurable alarms. This is perfect for clocks, calendars, or any other time-keeping project. It comes with 1 CR1225 (12mm Coin Cell Battery) that will afford your RTC years-and-years of time-keeping goodness.

SKU: ACE6629 Category: ACE Modules

ACE 6629 DS3234 Real-Time Clock Module RST Input / Output for Arduino Uno

Specifications:
At 0 ° C to + 40 ° C Range, accuracy of ± 2ppm
At -40 ° C to + 85 ° C range, accuracy of ± 3.5ppm
Provide battery backup for uninterrupted time input
Operating Temperature Range
Industrial: -40 ° C to + 85 ° C
Commercial Grade: 0 ° C to + 70 ° C
Low power consumption
Operating Voltage: 3.3 – 5 V
Real-time clock counts seconds, minutes, hours, day, date, month and year information has valid until 2099 Leap Year Compensation
Offers two regular alarm clocks every day
Programmable square-wave output
4MHz SPI interface, support for modes 1 and 3
Digital Temperature Sensor Output: Accuracy of ± 3 ° C
Aging correction register
RST Input / Output
Dimensions: 20 x 20mm
Includes CR1225 backup battery

Pin Configuration:
Pin Label // I/O // Description

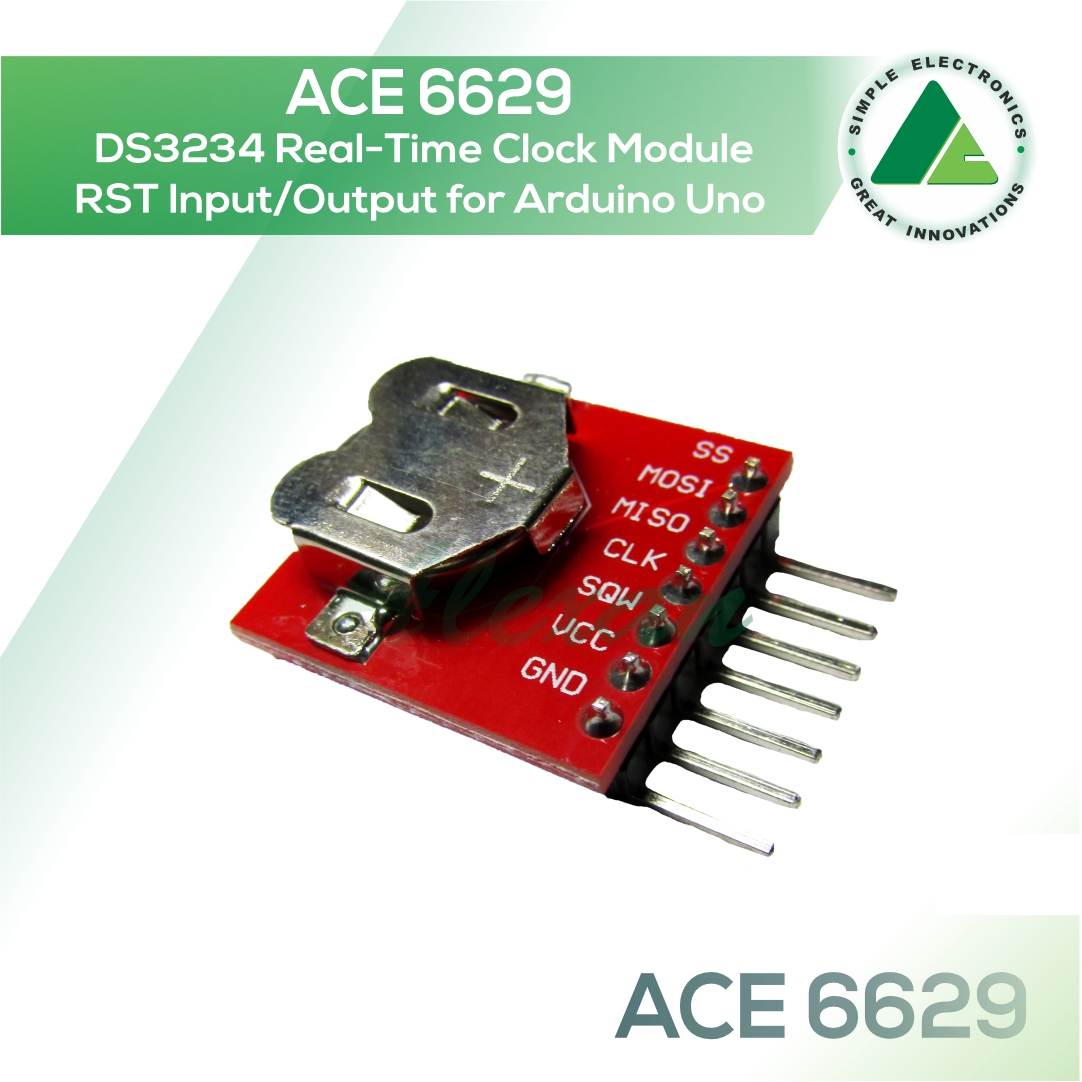

GND Supply Input Ground (0V) supply
VCC Supply Input DS3234 VCC power supply input
SQW Output Configurable square-wave output, Alarm 1 and/or Alarm 2 interrupt output
CLK Input SPI clock input
MISO Output SPI master in, slave out
MOSI Input SPI master out, slave in
SS Input SPI active-low chip select
