ACE 6702 Digital Load Cell Weight Sensor for Portable Electronic Kitchen Scale 1kg

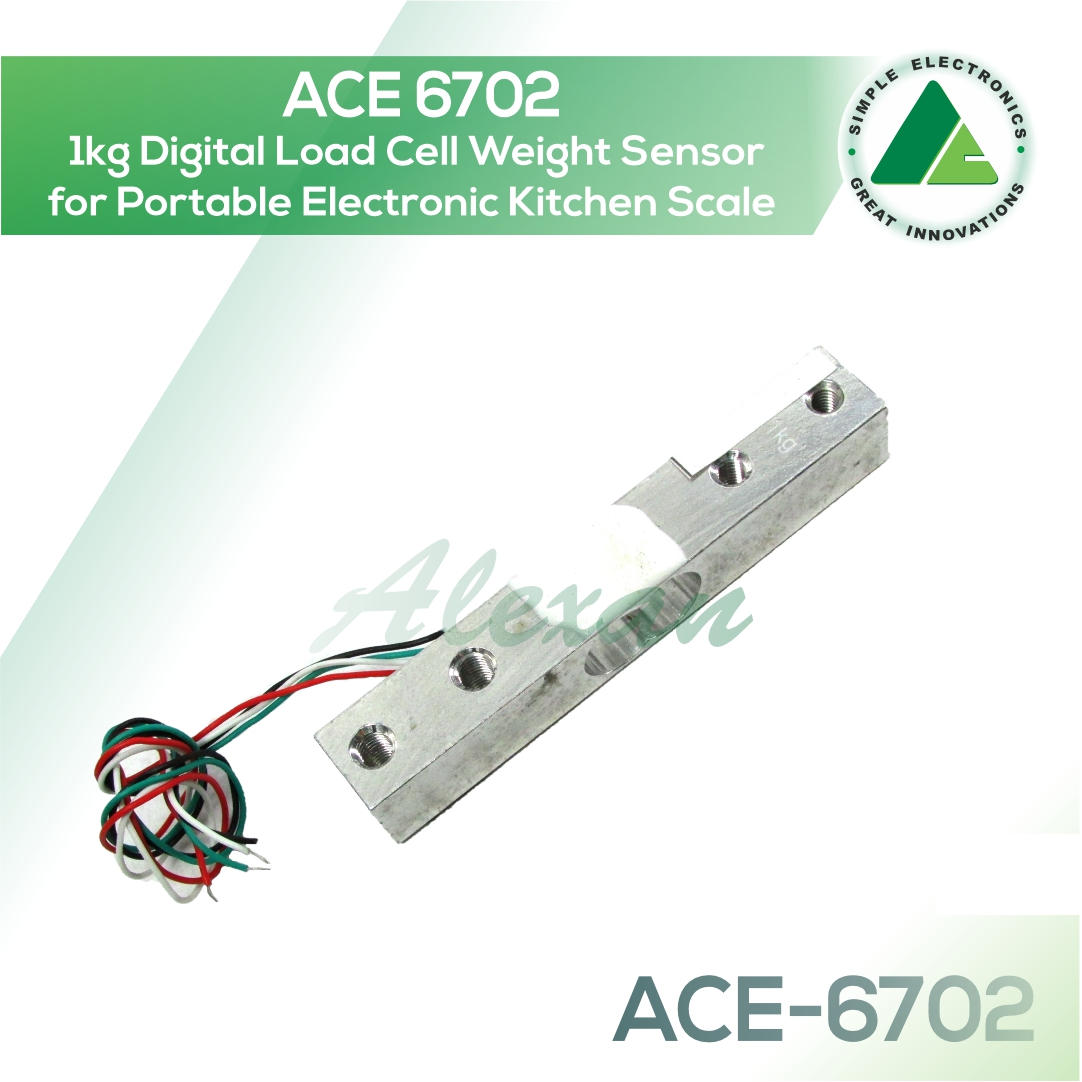

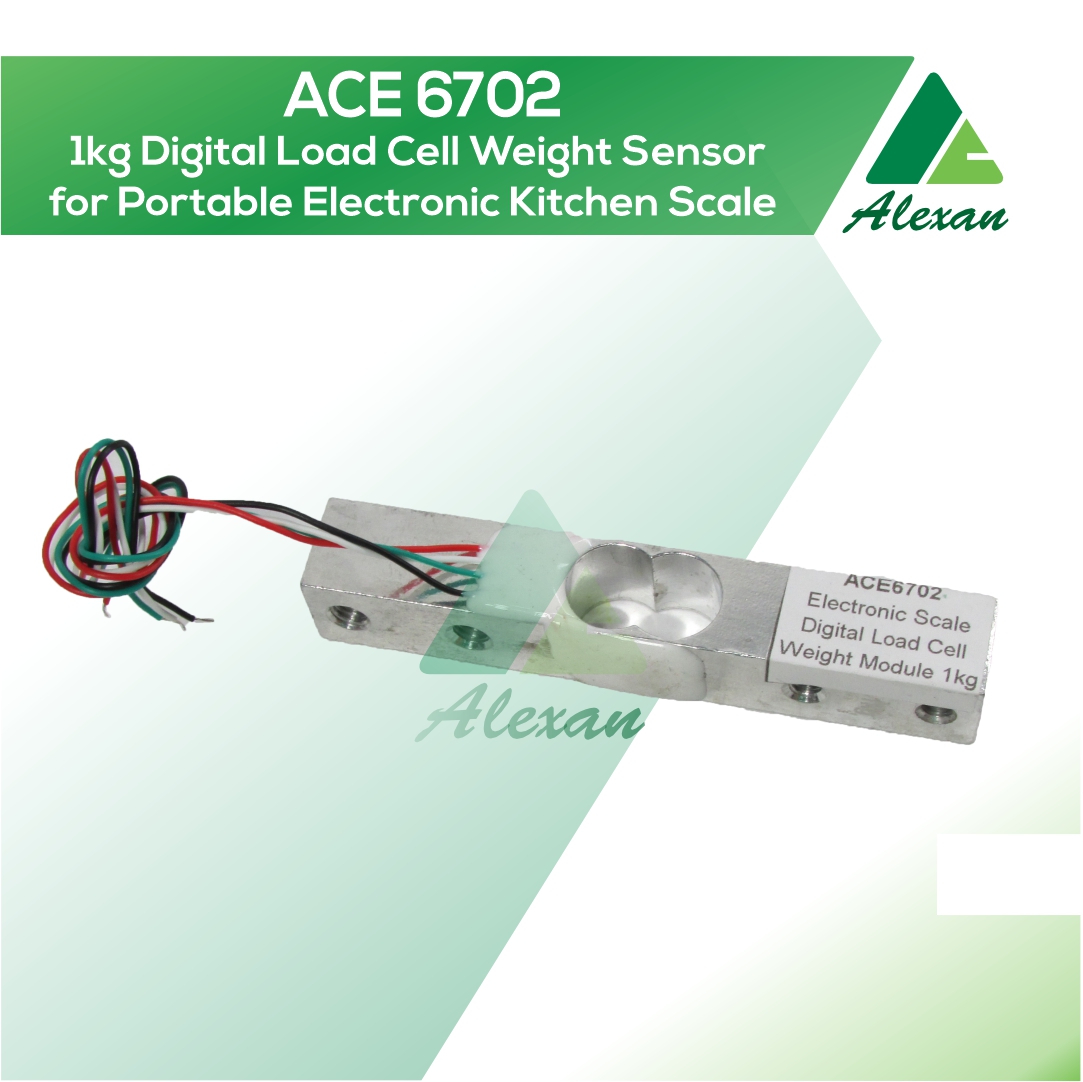

ACE 6702 1kg Digital Load Cell Weight Sensor for Portable Electronic Kitchen Scale

This load cell is made of sturdy aluminum alloy with strain gauges pre-attached and strain relieved wires. It accurately measures forces from 0 to 1kg.

A load cell is an application of strain measurements relating to weight measurement. A load is applied to a strain gauge, which causes the gauge to strain a certain amount and output a voltage proportional to the applied load.

Note: Do not directly push the white plastic cover part, so as not to damage the sensor.
The load cell is quite sensitive and depending on the changing environment, calibration may be essential.

SKU: ACE6702 Category:
ACE 6334 SD Card Reader Module
ACE 5357 ATTINY85 USB Development Board

ACE 6702 1kg Digital Load Cell Weight Sensor for Portable Electronic Kitchen Scale

Specification:
Measurement Range: 0 – 1 kg
Input Voltage: 5 – 10 V
Wires’ Length: 17.8 cm (7 in) pre-attached
Dimensions: 12.7 mm high, 12.7 mm wide, 80 mm long (0.5 in x 0.5 in x 3.15 in)
No. of mounting holes: 4 (15 mm spacing on each side)
Hole size: One side has both holes tapped M4 thread, the other side has both holes tapped M5 thread.

Wiring connection to HX711 module:

Red to E+
Black to E-
Green to A+
White to A-

Dimensions 80 × 12.7 × 12.7 mm
