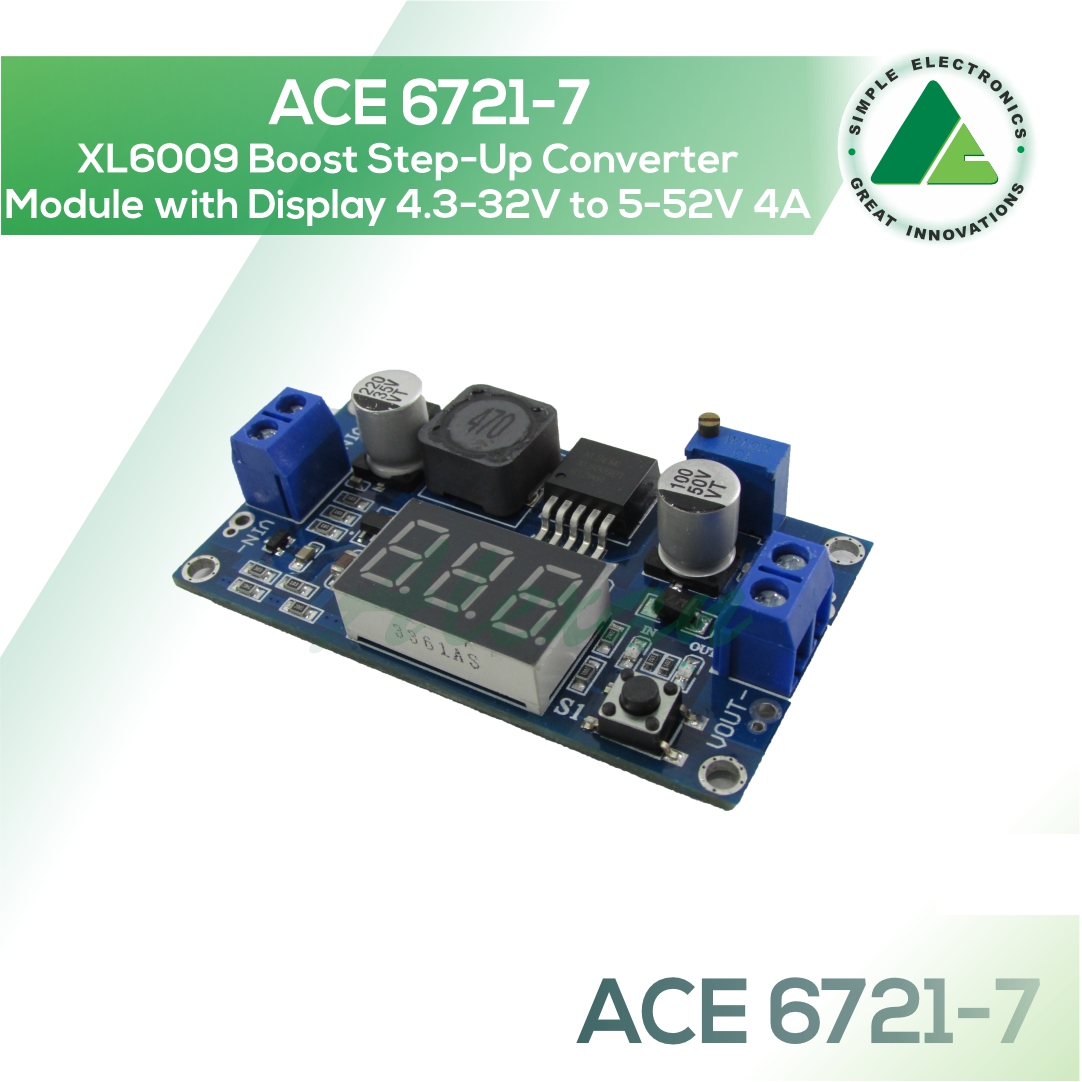

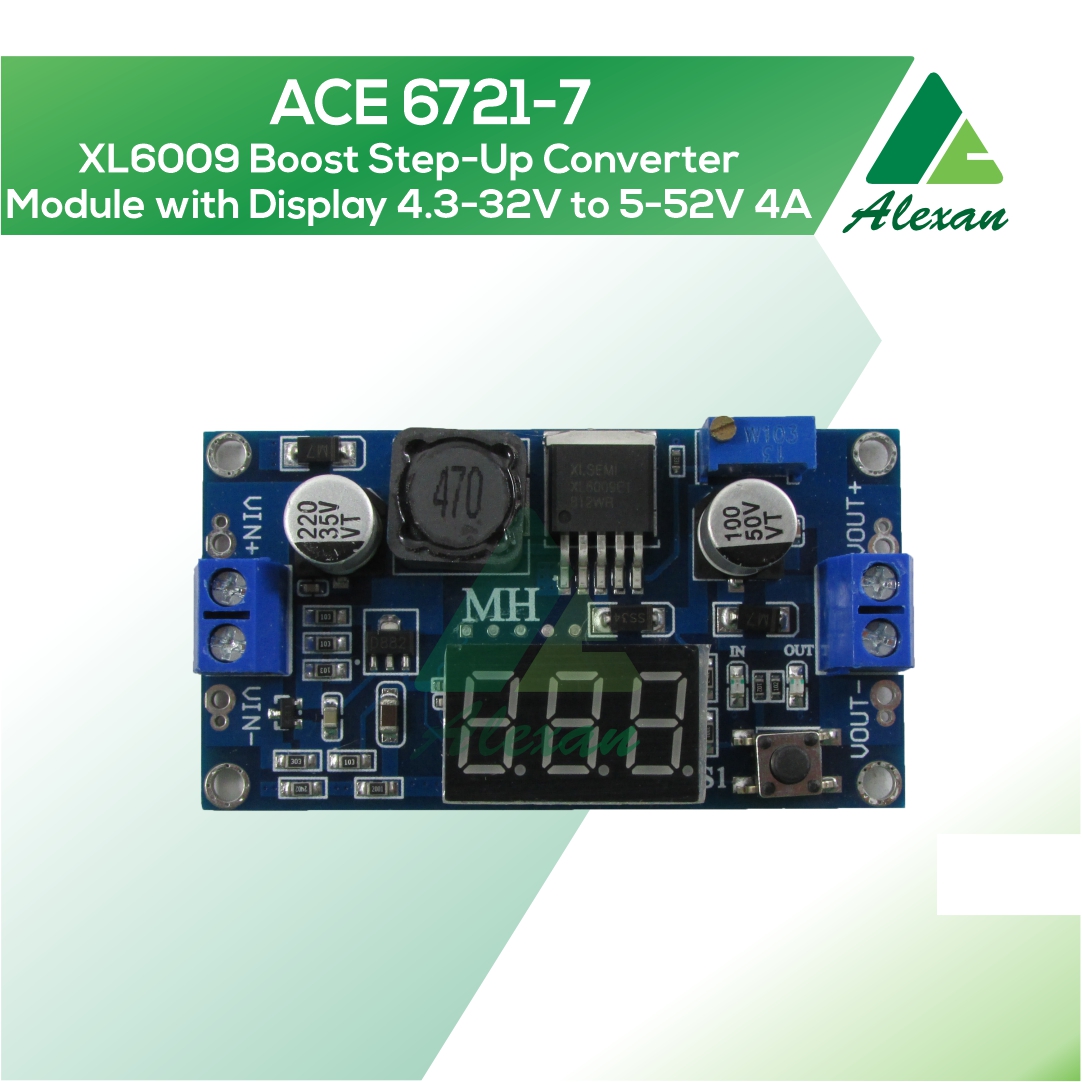

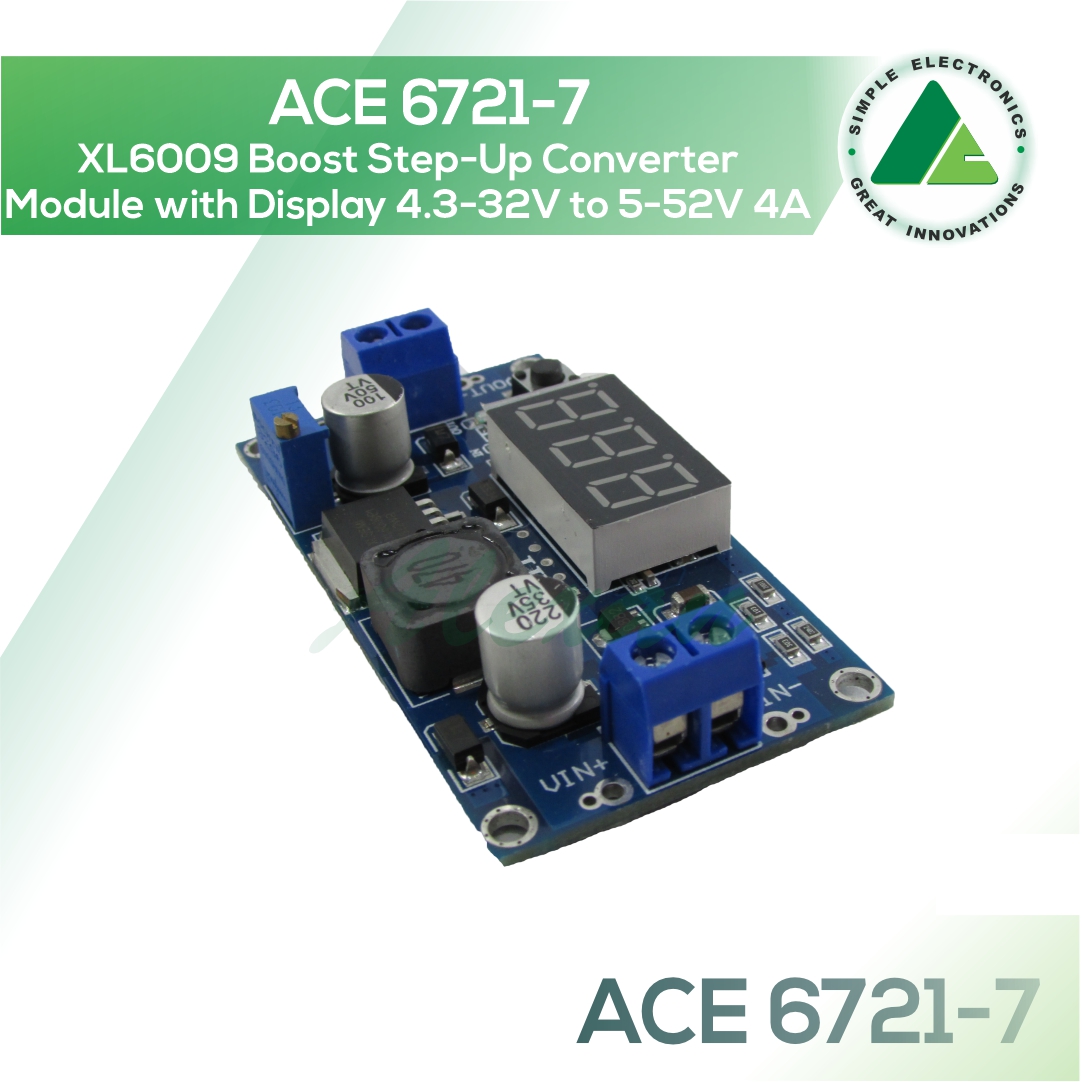

ACE 6721-7 XL6009 Boost Step-Up Converter Module with Display 4.3-32V to 5-52V 4A

ACE 6721-7 XL6009 Boost Step-Up Converter Module with Display 4.3-32V to 5-52V 4A

This DC-DC 12V power module voltage converter, also known as boost converter and step-up voltage converter, can convert your single input voltage source of 4.3V – 32V to 5V – 52V at up to 4A input current.

Note: Add heat sink for power exceeding 20W.

Features:

  • Equipped with self-calibrating voltmeter display and voltmeter – no need to use separate multimeter
  • With power and voltage LED indicator
  • A button to switch the measurement between input and output voltage and turning on and off the voltmeter.
  • Terminal blocks for solderless connection
  • With overheat and short circuit protection
  • With screw holes for easy installation
SKU: ACE6721-7 Category:
ACE 6765-4 PS2 Game Joystick X2 Axis Sensor Module for Arduino
ACE 3337 Mini Breadboard 170 Tie Points

ACE 6721-7  XL6009 Boost Step-Up Converter Module with Display 4.3-32V to 5-52V 4A

Specifications:

Module Feature: Non-isolation booster
Mode of rectification: Non-synchronous rectifier
Input voltage: 4.3 – 32 V
Output voltage: 5 – 52 V
Input current: 4A (maximum)
Transfer efficiency: 94% (highest), normally 85%
Switching frequency: 400 kHz
Output ripple: 50mV
Load regulation: ±0.5%
Voltage regulation: ±0.5%
Operating temperature: -40°C ~ +85°C
Module size: 66 x 36 x 13 mm

Dimensions 66 × 36 × 13 mm
