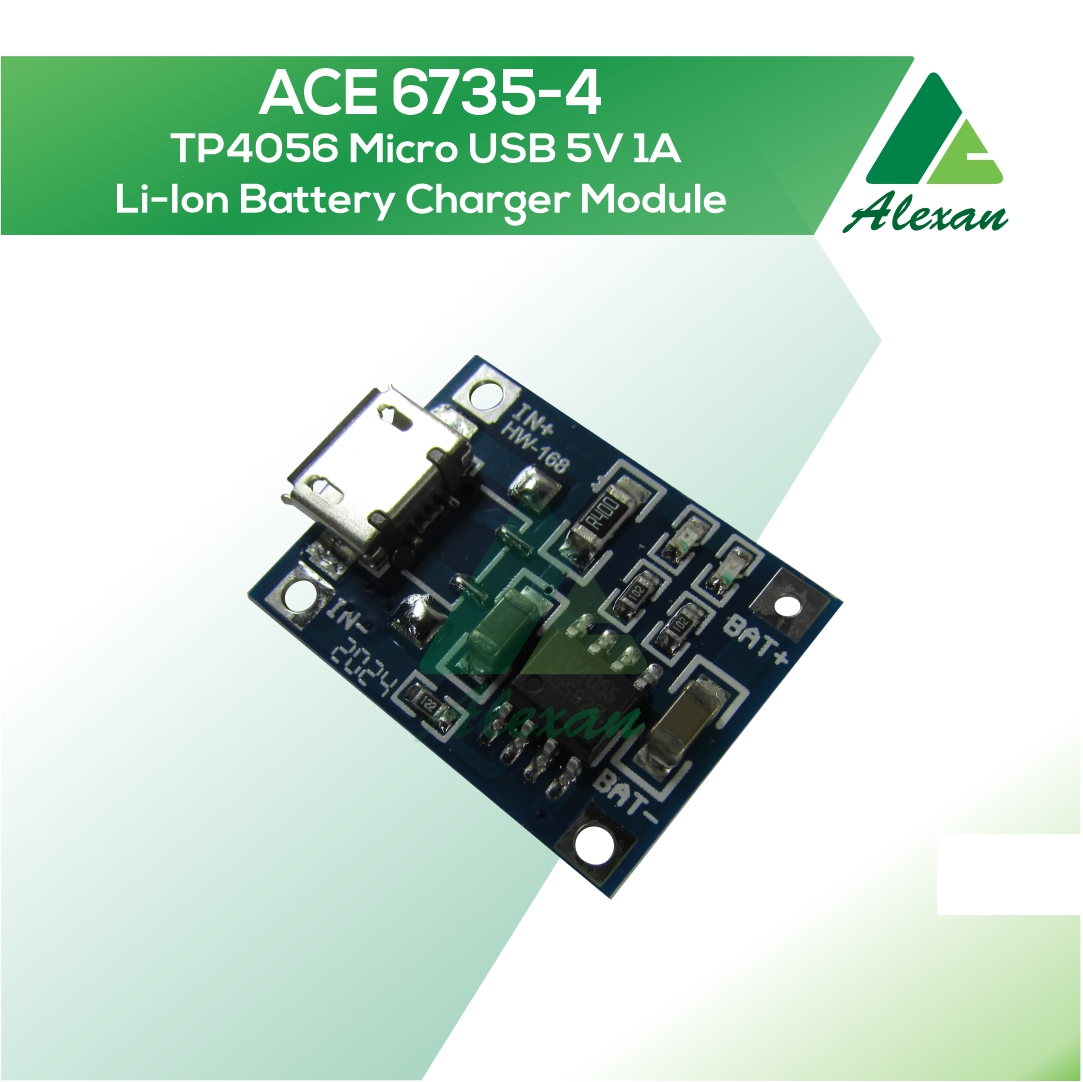

ACE 6735-4 TP4056 Micro USB 5V 1A Li-Ion Battery Charger Module

ACE 6735-4  TP4056 Micro USB 5V 1A Li-Ion Battery Charger Module

This small battery charger module uses the TP4056 controller and it is equipped with mini USB port so you can charge it using normal phone charger or power bank.

Notes:

  • The ammeter can only be connected to the 5V input of the module.
  • The charging current is preferably 37% of the battery capacity. If you use a 1000mAH battery to charge, a current of 400 is sufficient.
  • Do not connect cables too long.
  • Make sure the connection points are correct.
  • If the input voltage is too high, such as 5.2V, the current will be less than 1000mA, which is normal. With protection function, the charging current can be automatically subtracted to avoid burning the chip.
  • Input reverse has no effect on the chip, but reverse output (battery terminal) will burn the chip.
SKU: ACE6735-4 Category:

ACE 6735-4  TP4056 Micro USB 5V 1A Li-Ion Battery Charger Module



Specifications:

Charge module: Linear charging
Current: 1A adjustable
Charge precision: 1.5%
Input voltage: 4.5V – 5.5V
Full charge voltage: 4.2V
Led indicator: red is charging, green is full charged
Input interface: mini USB
Work temperature: -10°C to +85°C
Inversed polarity: No
Dimensions: 22 x 16 x 6mm
