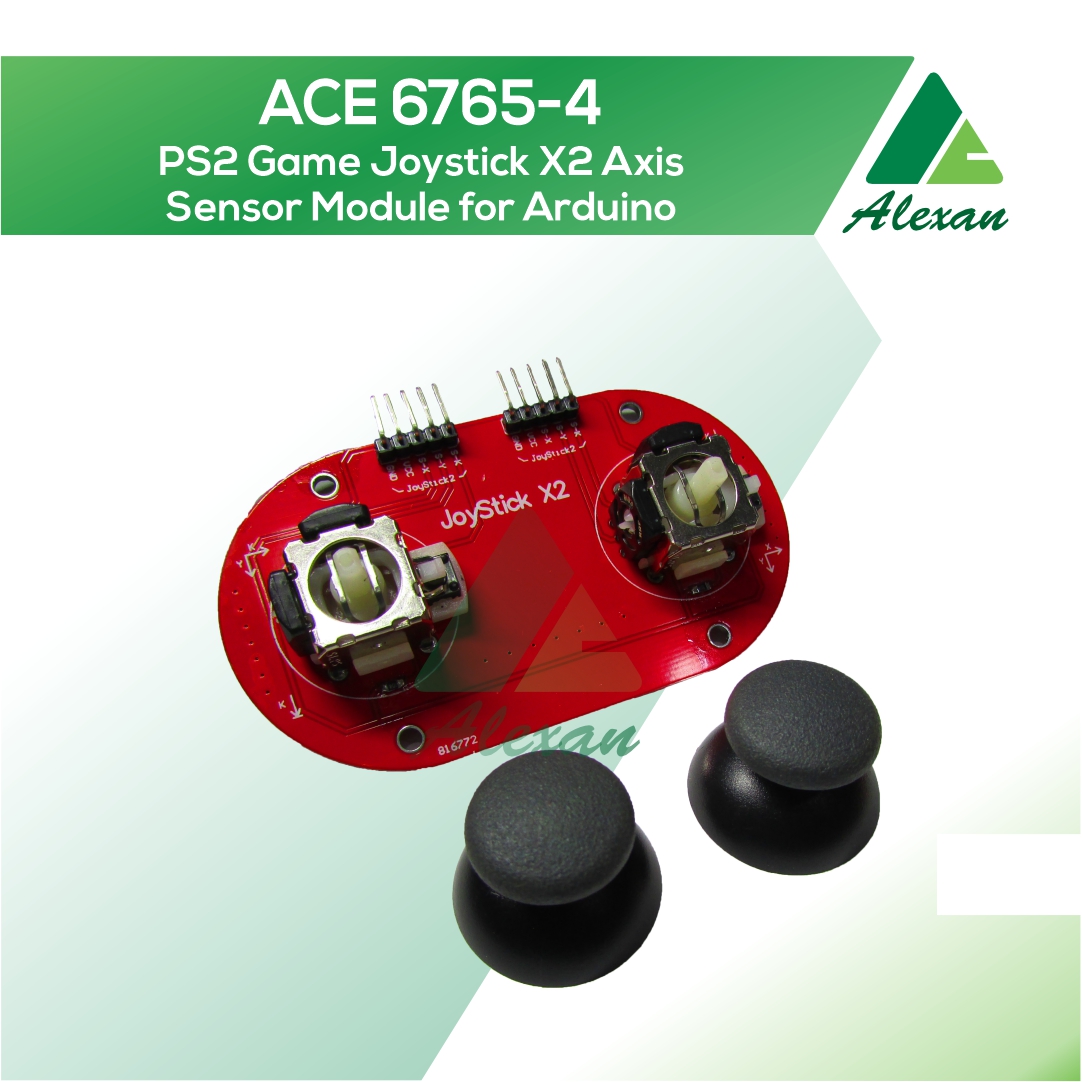

ACE 6765-4 PS2 Game Joystick X2 Axis Sensor Module for Arduino

ACE 6765-4 PS2 Game Joystick X2 Axis Sensor Module for Arduino

This module has 2 on-board rocker modules mostly used in Arduino based DIY projects and Robot Control. The module gives analog output so it can be used for feeding the analog input based on direction or movement. It is applicable to two-degree-of-freedom steering gear, PTZ control and other remote-control applications.

Features:
Two independent potentiometers: one for each axis (X and Y)
Auto return to center position
Cup-type Knob
Compatible to interface with Arduino
With bolt holes for easy installation
Applications:
Camera Pan/Tilt Control
Game Input/Control
Robot Control

SKU: ACE6765-4 Category: ACE Modules

ACE 6765-4 PS2 Game Joystick X2 Axis Sensor Module for Arduino

Specifications:
Operating Voltage: 3.3 – 5 V
Internal Potentiometer value: 10k
Operating temperature: 0 to 70 °C
Bolt hole diameter: 3mm
Size: 91 * 51 * 32mm
2.54mm pin interface leads
Port: Each rocker has 2 analog voltage and 1 digital level
Platform: Arduino, single chip, ARM, Raspberry Pi
