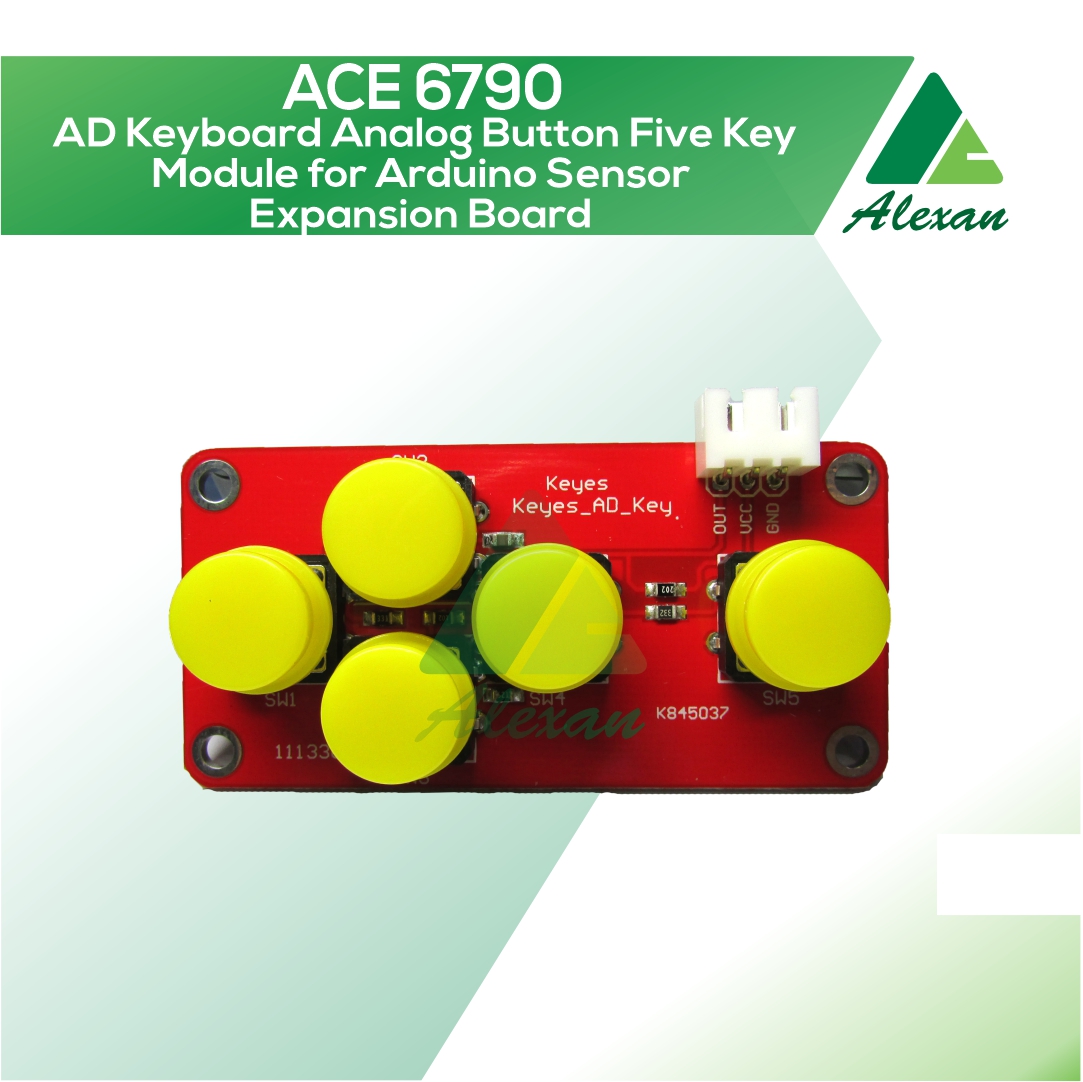

ACE 6790 AD Keyboard Analog Button Five Key Module for Arduino Sensor Expansion Board

ACE 6790 AD Keyboard Analog Button Five Key Module for Arduino Sensor Expansion Board

This module provides a 5-button keypad in a gamepad style arrangement. It allows you to use an analog port to read the five key states and save for the Arduino IO port.

Features:

  • 5 buttons occupy an analog port which saves resources
  • Analog acquisition
  • Sensitive, durable and high-quality Omron button
  • Compatible with Arduino sensor interface
SKU: ACE6790 Category:
ACE 6427 ULN2003 Stepper Motor Controller Shield with 5V Stepper Motor
ACE 6334 SD Card Reader Module

ACE 6790 AD Keyboard Analog Button Five Key Module for Arduino Sensor Expansion Board

Specifications:

Operating voltage: 5V DC
Data Type: analog signal
Interface Type: PH 2.5-3P
Size: 68 x 33 x 16 mm

Pinout:

OUT: Analog signal output
VCC: 5V DC Input
GND: Ground

Dimensions 68 × 33 × 16 mm
