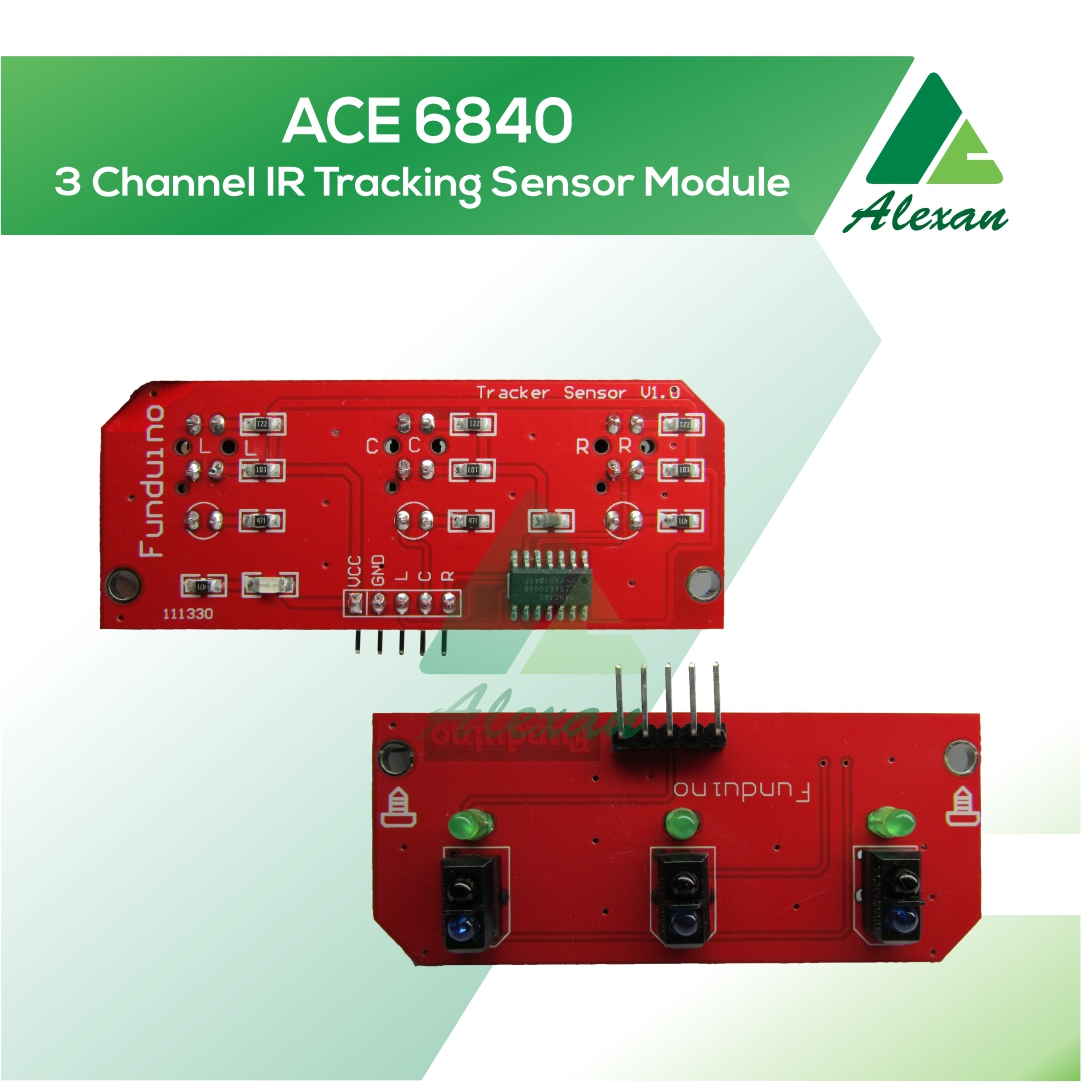

ACE 6840 3-Channel IR Tracking Sensor Module

ACE 6840 3-Channel IR Tracking Sensor Module

This Arduino compatible line tracking module has 3 TCRT5000 Infrared Line Tracking sensors with on-board comparator, LED indicators and other signal conditioning components. This module is ideally suited to white/black detection, typically seen in line following robots. 3 channels and a reduced susceptibility to interference makes this module an option for any line following robot. The multiple channels provide a simple method of detecting when the robot is going off course, when either the left or right sensors detect a line and the robot leaving the route.

Features:

Infrared detection, strong anti-interference ability
High sensitivity, stable performance
With fixed bolt hole for easy installation

SKU: ACE6840 Category: ACE Modules

ACE 6840 3-Channel IR Tracking Sensor Module

Specifications:

Working voltage: 5V, black line output low level, white line output high level
Detection range: 10mm
Dimensions: 2.68 in x 1.26 in x 0.31 in (6.8 cm x 3.2 cm x 0.8 cm)
Weight: 0.28 oz (8 g)

Module Connections:
1 x 5 Male Header

VCC – Connect to 5V.
GND – Connect to system ground. This ground needs to be in common with the microcontroller.
L – Left Channel Detector. Connect to any digital Input pin on microcontroller.
C – Center Channel Detector. Connect to any digital Input pin on microcontroller.
R– Right Channel Detector. Connect to any digital Input pin on microcontroller.
