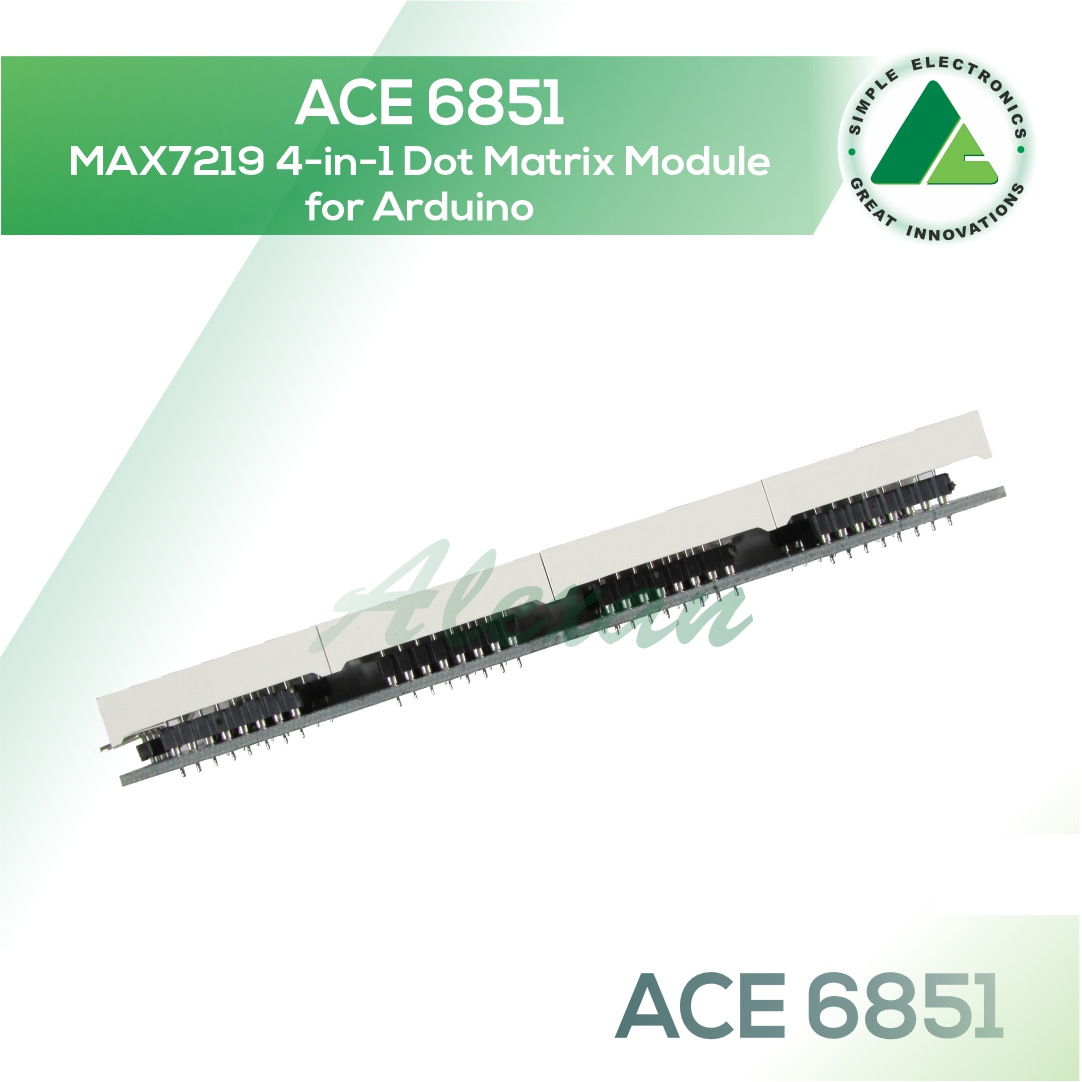

ACE 6851 MAX7219 4-in-1 Dot Matrix Module for Arduino

ACE 6851 MAX7219 4-in-1 Dot Matrix Module for Arduino

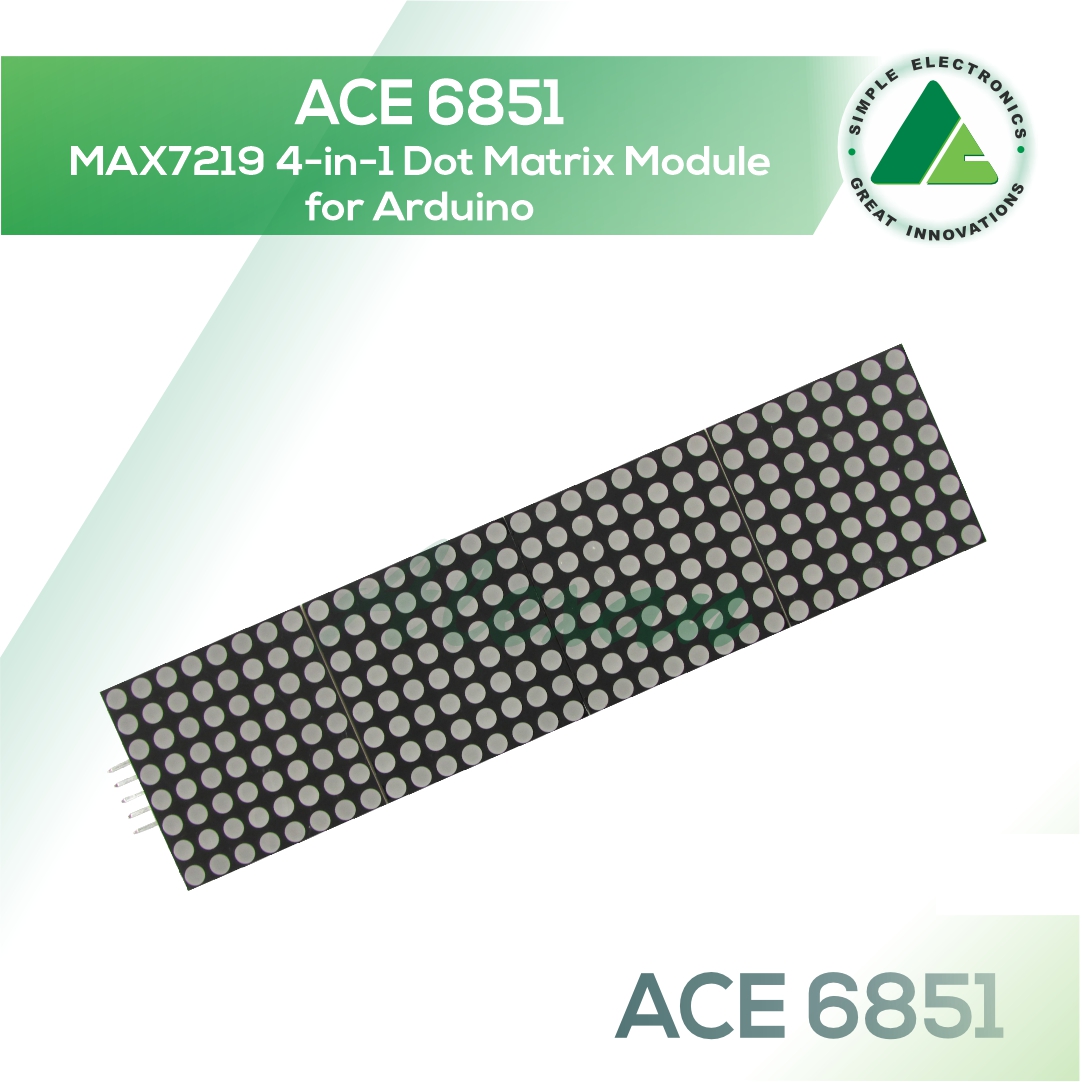

This Display consisting of 4 dot matrix displays 8×8 LEDs (total 32×8 LEDs), controlled by MAX7219. MAX7219 is an integrated serial input/output common-cathode display driver; It is managed by the microcontroller (Arduino, PIC, etc.) through SPI, which makes it very easy to control.

Features:

  • Requires only 3 communication pins of MCU
  • Pre-cascaded MAX7219 Dot Matrix LED Module
  • The overall size of the display is very compact

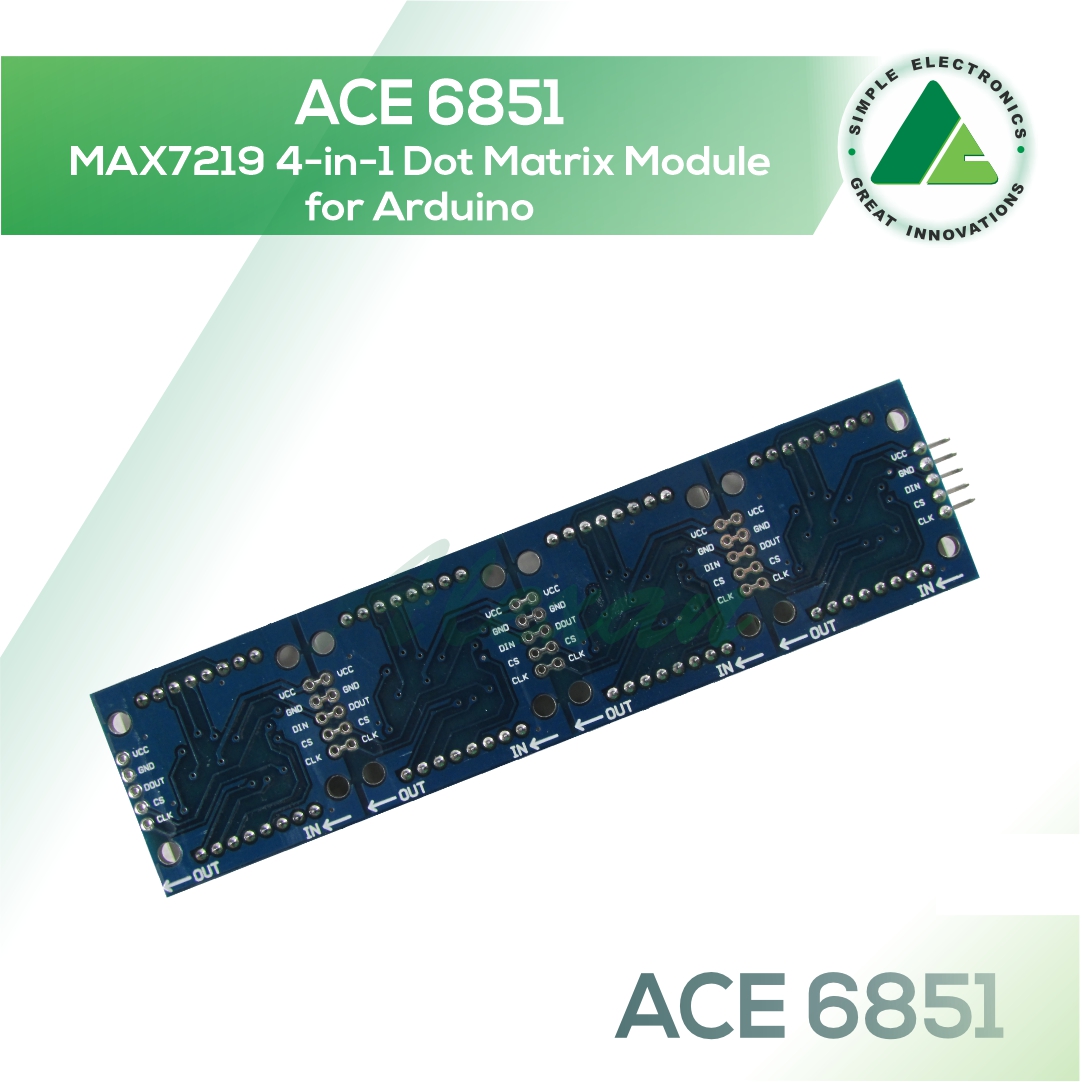

  • With input and output interfaces
  • With 16 M3 holes (diameter: 3mm) for mounting
SKU: ACE6851 Category:
ACE 7365 2.8" TFT LCD Shield Touch Panel Module for Arduino Uno
ACE 6347-5V 8 Channel Optocoupler Driver Relay Module for Arduino

ACE 6851 MAX7219 4-in-1 Dot Matrix Module for Arduino

Specifications:

Operating voltage: 5V
Operating Current: 320 mA
Driver Chip: MAX7219
Dot Matrix: 4 pcs. 8×8 module, total of 256 LEDs
LED type: common cathode LEDs (Red color)
Dimensions: 128X 32x x13 mm

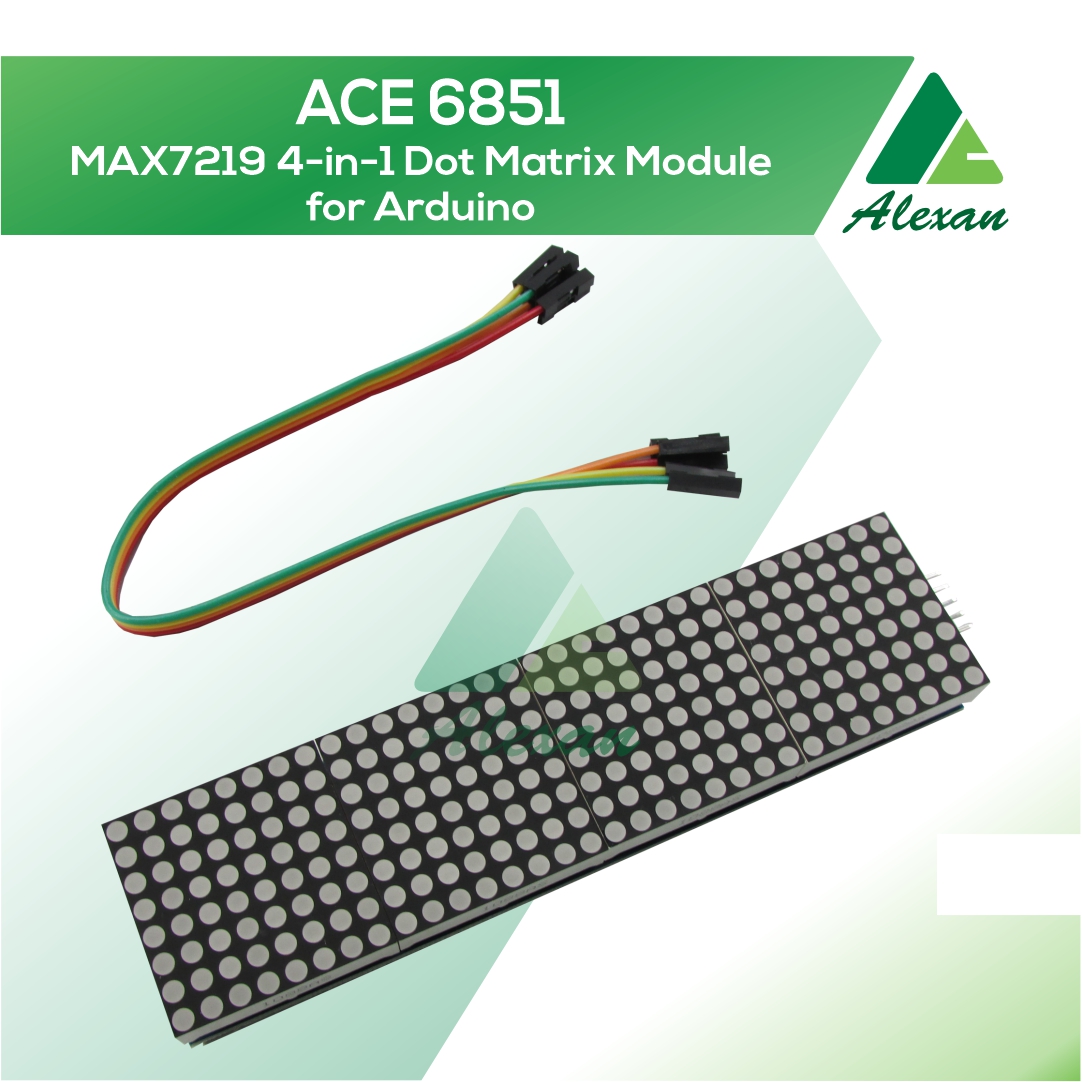

Package includes:
1 x Dot Matrix Module
1 x 5-pin Male Header (Right Angle)
1 x 200mm 5-pin Female to Female Dupont Wire

Dimensions 128 × 32 × 18 mm
