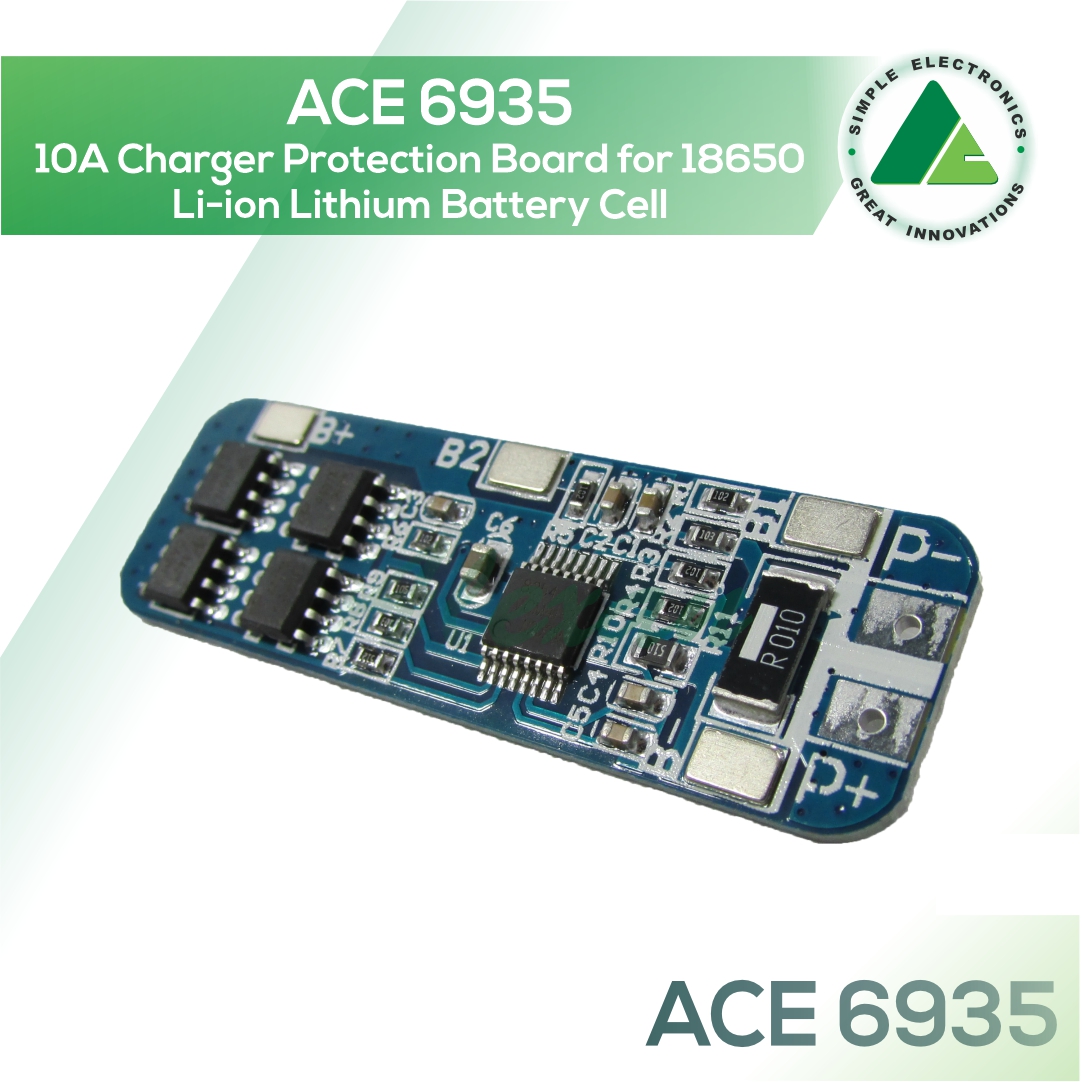

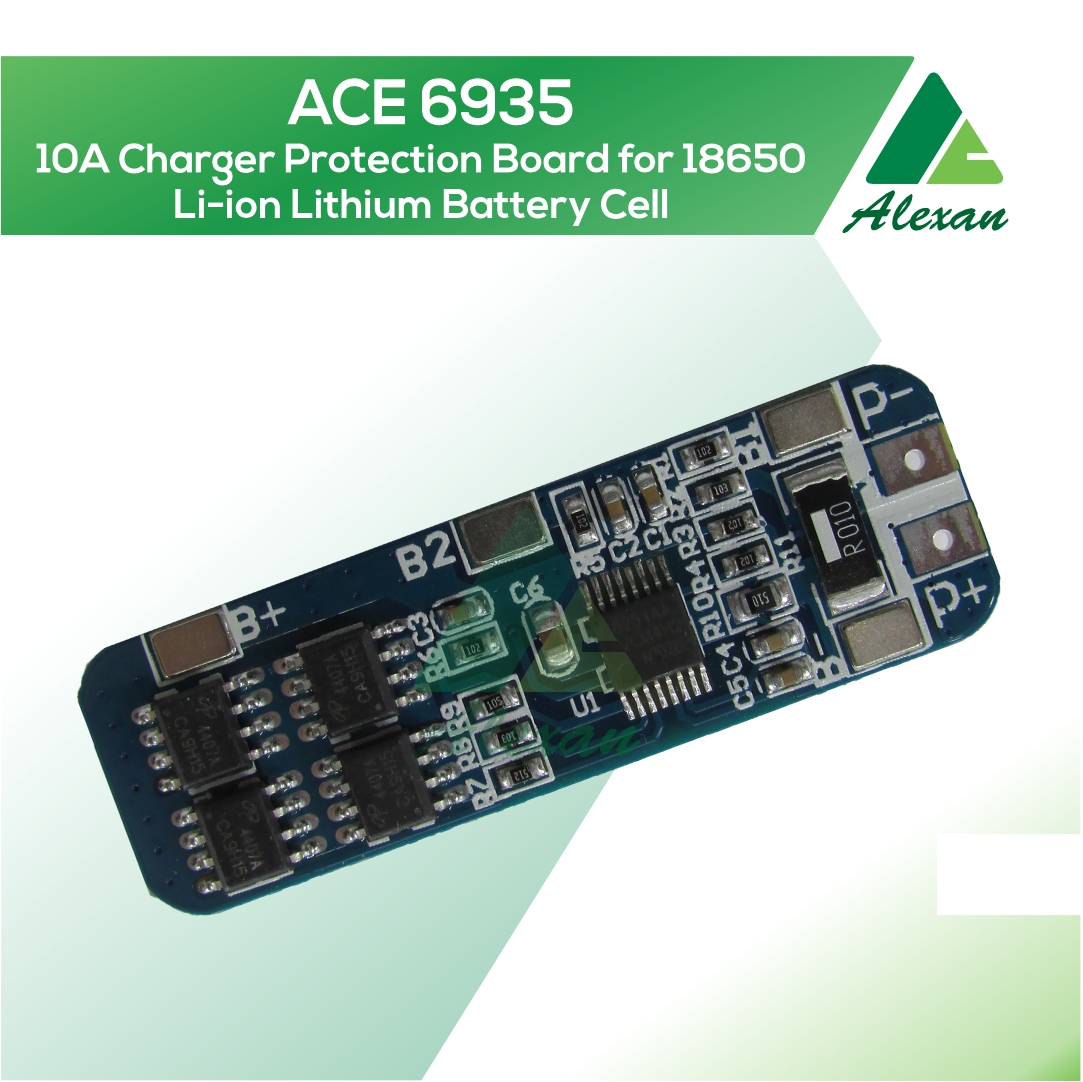

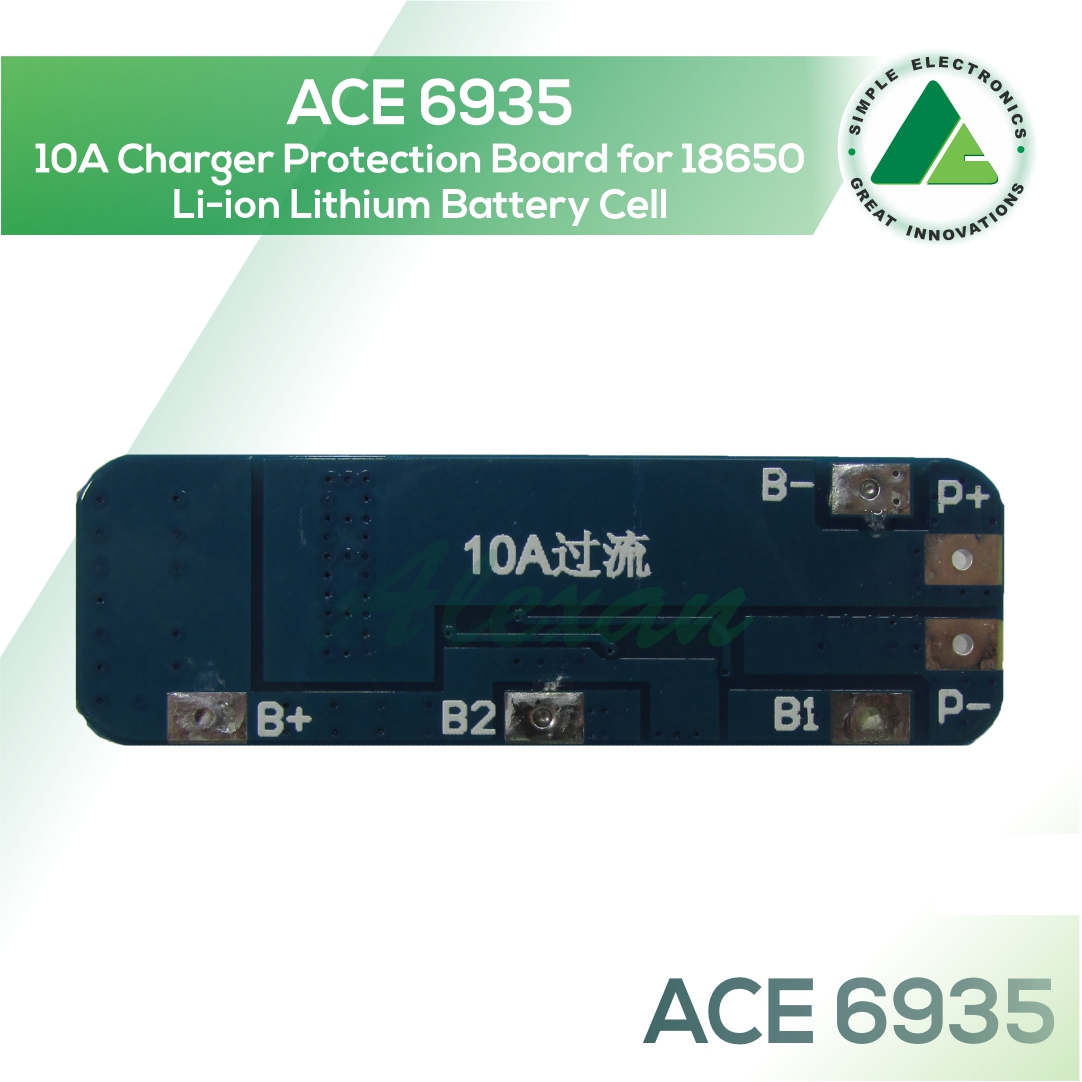

ACE 6935 10A Charger Protection Board for 18650 Li-ion Lithium Battery Cell

ACE 6935 10A Charger Protection Board for 18650 Li-ion Lithium Battery Cell

This module is a battery protection board designed for 3 series Li-ion batteries.

Features:

  • Short circuit protection
  • Overcharge protection
  • Over-discharge protection
  • Overcurrent protection
  • Can be applied to various 3.7V lithium core
  • Compact size and lightweight
  • Ensures the security of battery pack
  • Suitable for:
  • 10.8V (Rated voltage of polymer battery)
  • 11.1V (18650 or 3.7V lithium battery rated voltage)
  • 12.6V (Lithium battery full charge voltage)
SKU: ACE6935 Category:
ACE 5484-4 L293D Motor Drive Shield Expansion Board
ACE 6835-7 DC-DC USB Step-Down Power Supply Converter 24V/12V to 5V 5A

ACE 6935 10A Charger Protection Board for 18650 Li-ion Lithium Battery Cell



Specifications:

Maximum discharge current: 10 A
Overcharge detection voltage: 4.25 – 4.35V ± 0.05V
Over-discharge detection voltage: 2.3 – 3.0V ± 0.05V
Maximum working current: 5 – 8A
Transient current: 9 – 10A
Operating temperature: -40 ~ +50°C
Storage temperature: -40 ~ +80°C
Quiescent current: < 6uA
Internal resistance: < 60mΩ
Service life: > 30,000 hours
Dimension: 50 x 15 x 1mm

Dimensions 50 × 15 × 1 mm
